MCP1700T-1202E/TT

MCP1700T-1202E/TT Overview

Product belongs to the - series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style SOT-23-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-3 Tolerance of 2 % 2.3 V ~ 6 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.3696 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V Maximum Input Voltage: 6 V Output current: 250 mA The product's 2.3 V is 5.1 V. Load regulation is 1 %. The voltage regulation accuracy of this product is 0.4 %. Input bias current of 1.6 uA This product has a 4 uA of 7 mA, making it ideal for low-power applications. The 0.178 V at 250 mA. The maximum 350 mV is 360 mV. This product's 0.75 %/V is 0.01 %/V. The product's 44 dB is -20 dB.

MCP1700T-1202E/TT Image

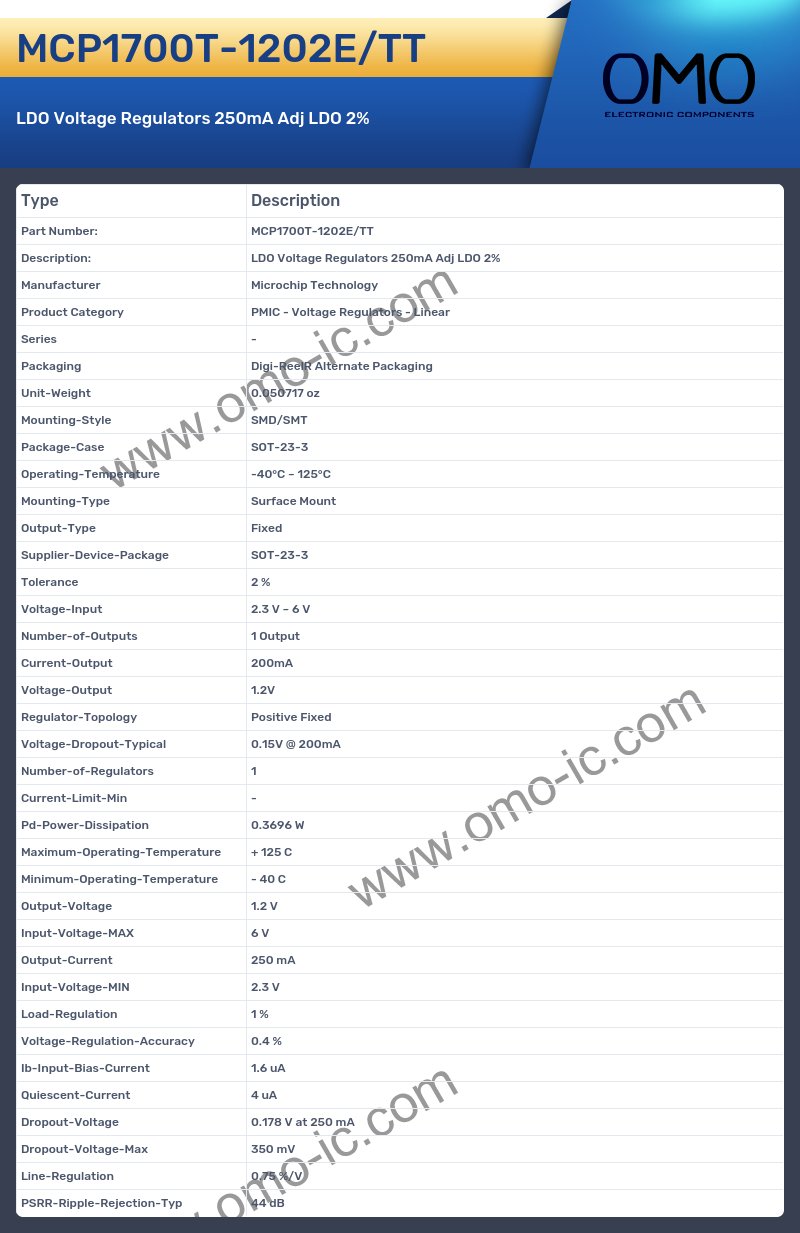

MCP1700T-1202E/TT Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-3
• Tolerance 2 %
• Voltage-Input 2.3 V ~ 6 V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output 1.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.15V @ 200mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 0.3696 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V
• Input-Voltage-MAX 6 V
• Output-Current 250 mA
• Input-Voltage-MIN 2.3 V
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 0.4 %
• Ib-Input-Bias-Current 1.6 uA
• Quiescent-Current 4 uA
• Dropout-Voltage 0.178 V at 250 mA
• Dropout-Voltage-Max 350 mV
• Line-Regulation 0.75 %/V
• PSRR-Ripple-Rejection-Typ 44 dB
