MCP1643-I/MC

MCP1643-I/MC Overview

Product belongs to the - series. Type: DC DC Regulator Tube Alternate Packaging is the packaging method for this product Weight of 0.001319 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications DFN-8 This product's 1MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 8-DFN (2x3) Number-of-Outputs: 1 Current-Output-Channel is 550mA This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 5V. The minimum 0.5V required for voltage supply. Output voltage: 5V Dimming control is done through PWM communication. Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 5 V Output current: 1.6 A Switching frequency is 1 MHz The product's 0.5 V is 5.1 V.

MCP1643-I/MC Image

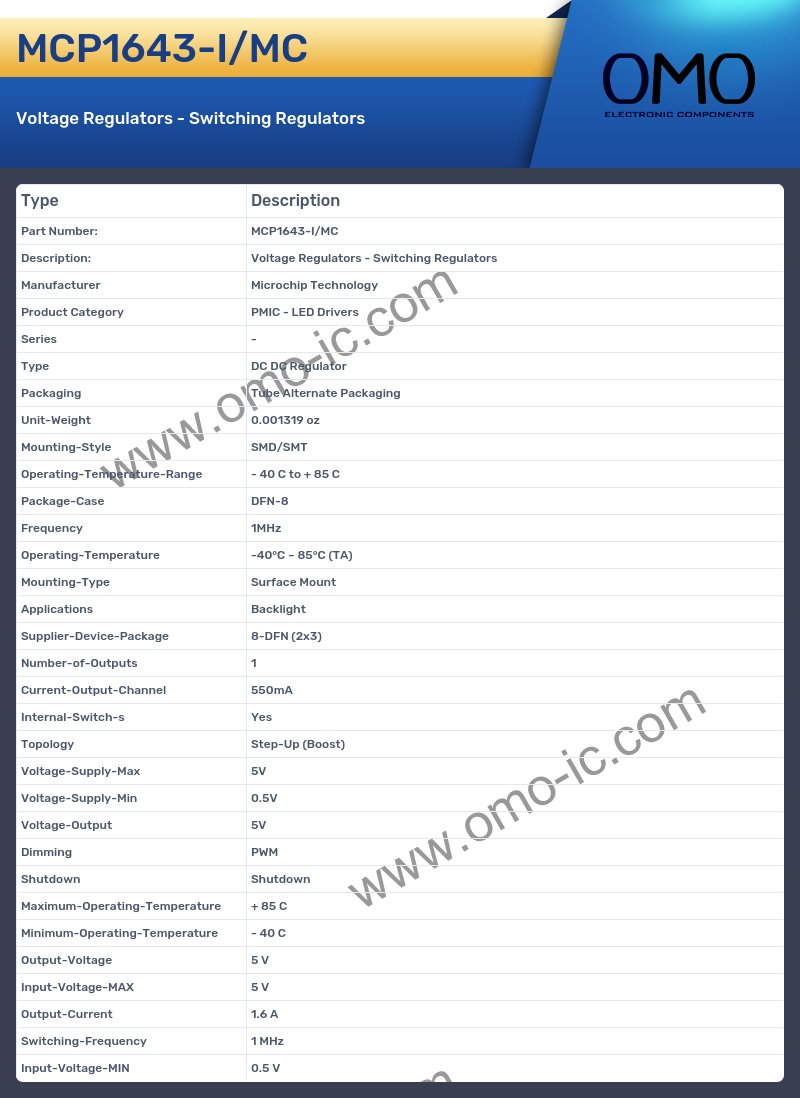

MCP1643-I/MC Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - LED Drivers
• Series -
• Type DC DC Regulator
• Packaging Tube Alternate Packaging
• Unit-Weight 0.001319 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case DFN-8
• Frequency 1MHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 8-DFN (2x3)
• Number-of-Outputs 1
• Current-Output-Channel 550mA
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 5V
• Voltage-Supply-Min 0.5V
• Voltage-Output 5V
• Dimming PWM
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 5 V
• Output-Current 1.6 A
• Switching-Frequency 1 MHz
• Input-Voltage-MIN 0.5 V
