MCP1320T-29LE/OT

MCP1320T-29LE/OT Overview

Product belongs to the MCP132X series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: SOT-23-5 The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 2.9V. Power-off control: 240 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 10 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1 V This product includes Watchdog This product's 2 V to 4.7 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 1.4 ms 30 ms 200 ms 1.6 s is 200 ms. The 2.944 V is 2.35 V. 2.857 V is set to 2.29 V.

MCP1320T-29LE/OT Image

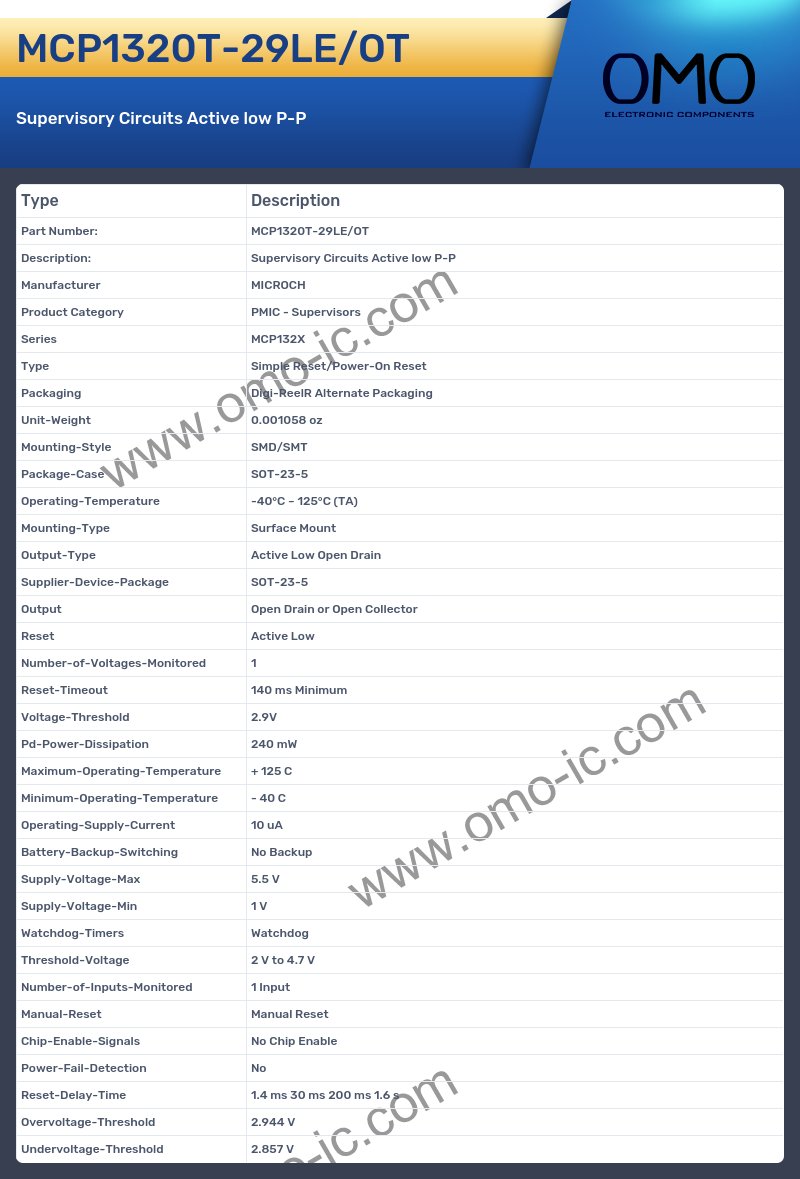

MCP1320T-29LE/OT Specifications

• Manufacturer MICROCH
• Product Category PMIC - Supervisors
• Series MCP132X
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package SOT-23-5
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 2.9V
• Pd-Power-Dissipation 240 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 10 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 2 V to 4.7 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 1.4 ms 30 ms 200 ms 1.6 s
• Overvoltage-Threshold 2.944 V
• Undervoltage-Threshold 2.857 V
