MCP1258-E/UN

MCP1258-E/UN Overview

Product belongs to the - series. Type: Step-Down Converter Tube Alternate Packaging is the packaging method for this product Weight of 0.005051 oz SMD/SMT Mounting-Style MSOP-10 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Fixed Product function is Step-Up. Supplier device package: 10-MSOP Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 650kHz for optimal performance. The Positive. Minimum fixed output voltage is 3.3V . The value of No is included as a product attribute. The minimum input voltage is 1.8V. The 3.6V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Input Voltage Range: 3.6 V Maximum Input Voltage: 3.6 V Output current: 100 mA (Min) Switching frequency is 650 kHz The product's 1.8 V is 5.1 V.

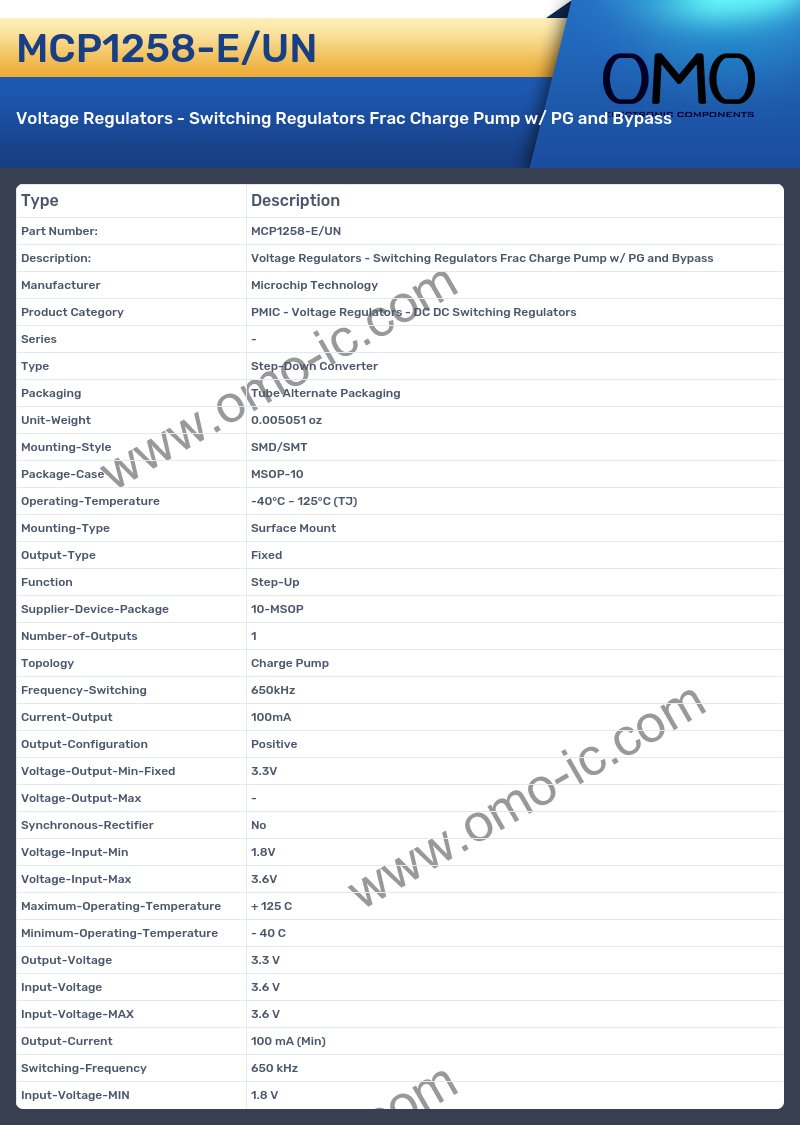

MCP1258-E/UN Image

MCP1258-E/UN Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series -
• Type Step-Down Converter
• Packaging Tube Alternate Packaging
• Unit-Weight 0.005051 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-10
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Step-Up
• Supplier-Device-Package 10-MSOP
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 650kHz
• Current-Output 100mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 3.3V
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 1.8V
• Voltage-Input-Max 3.6V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage 3.6 V
• Input-Voltage-MAX 3.6 V
• Output-Current 100 mA (Min)
• Switching-Frequency 650 kHz
• Input-Voltage-MIN 1.8 V
