MCP120T-475I/SN

MCP120T-475I/SN Overview

Product belongs to the - series. Type: Simple Reset/Power-On Reset Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: 8-SOIC The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 150 ms Minimum. This product's 4.625V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 60 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1 V This product includes No Watchdog This product's 3 V 3.3 V 5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 350 ms is 200 ms. The 4.75 V is 2.35 V. 4.5 V is set to 2.29 V.

MCP120T-475I/SN Image

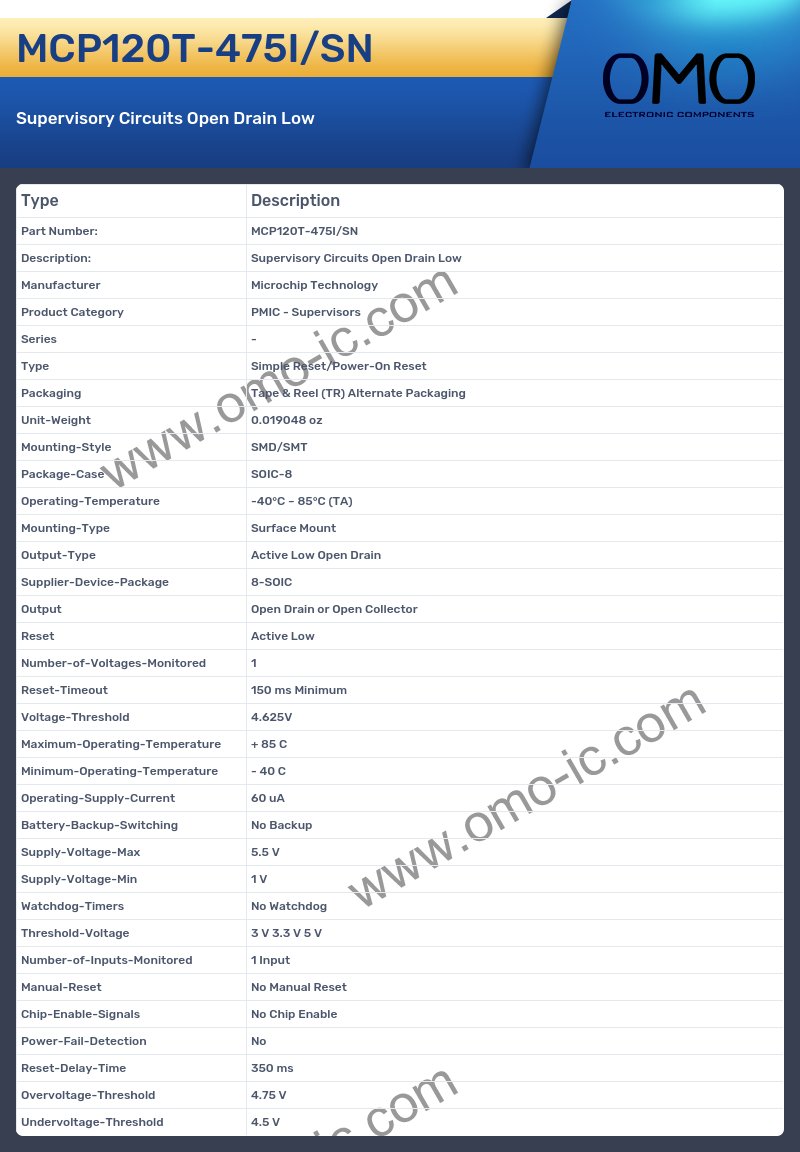

MCP120T-475I/SN Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Supervisors
• Series -
• Type Simple Reset/Power-On Reset
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package 8-SOIC
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 150 ms Minimum
• Voltage-Threshold 4.625V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 60 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 3 V 3.3 V 5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 350 ms
• Overvoltage-Threshold 4.75 V
• Undervoltage-Threshold 4.5 V
