MC13224V Overview

Product belongs to the - series. Type: TxRx + MCU Tray is the packaging method for this product 145-TFLGA This product's 2.4GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 105°C Sensitivity: -100dBm Voltage Supply Range: 2 V ~ 3.6 V This product comes with a 128kB Flash, 80kB ROM, 96kB SRAM memory size. Data rate maximum is 250kbps . Serial Interfaces: I2C, I2S, JTAG, SPI, UART 4dBm Current receiving is 22mA ~ 24mA 802.15.4 is the RF family standard. O-QPSK modulated The device has 64 GPIOs. 29mA range: 8.7mA to 32.1mA

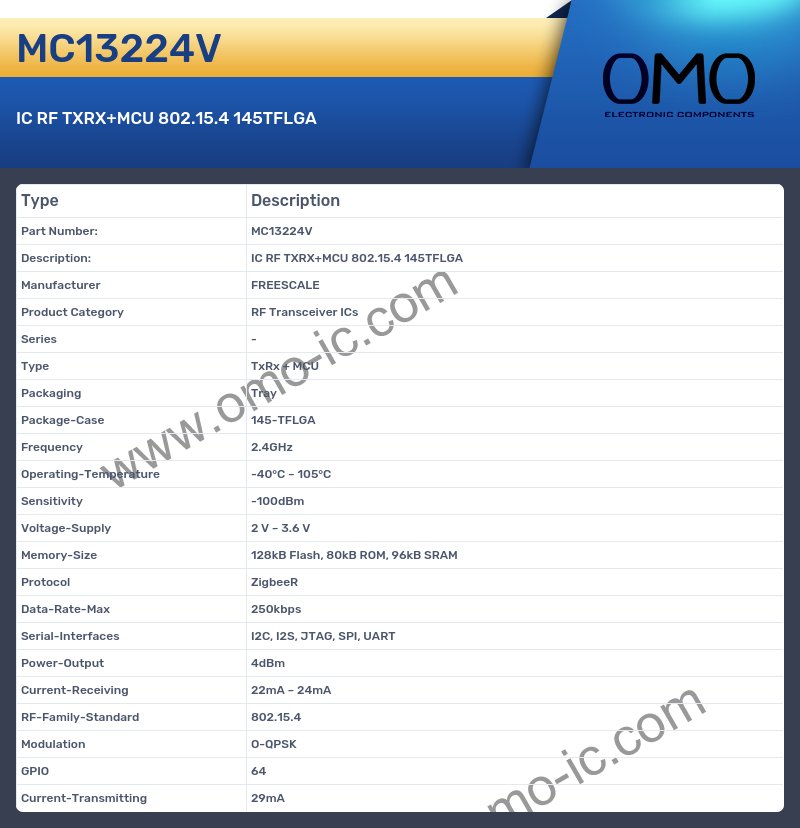

MC13224V Image

MC13224V Specifications

• Manufacturer FREESCALE
• Product Category RF Transceiver ICs
• Series -
• Type TxRx + MCU
• Packaging Tray
• Package-Case 145-TFLGA
• Frequency 2.4GHz
• Operating-Temperature -40°C ~ 105°C
• Sensitivity -100dBm
• Voltage-Supply 2 V ~ 3.6 V
• Memory-Size 128kB Flash, 80kB ROM, 96kB SRAM
• Protocol ZigbeeR
• Data-Rate-Max 250kbps
• Serial-Interfaces I2C, I2S, JTAG, SPI, UART
• Power-Output 4dBm
• Current-Receiving 22mA ~ 24mA
• RF-Family-Standard 802.15.4
• Modulation O-QPSK
• GPIO 64
• Current-Transmitting 29mA
