MAT14ARZ-RL

MAT14ARZ-RL Overview

Product belongs to the MAT14 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.011923 oz 14-SOIC (0.154", 3.90mm Width) Surface Mount mounting type Supplier device package: 14-SO Configuration Quad Transistor type: 4 NPN (Quad) Matched Pairs Maximum current collector Ic is 30mA . Maximum collector-emitter breakdown voltage of 40V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 60mV @ 100μA, 1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C Rated VCEO up to 40 V The transistor polarity is NPN. The 40 V voltage rating is 40 V. Max DC collector current: 0.03 A Minimum hfe for DC collector-base gain is 300 at 1 mA 200 at 1 mA.

MAT14ARZ-RL Image

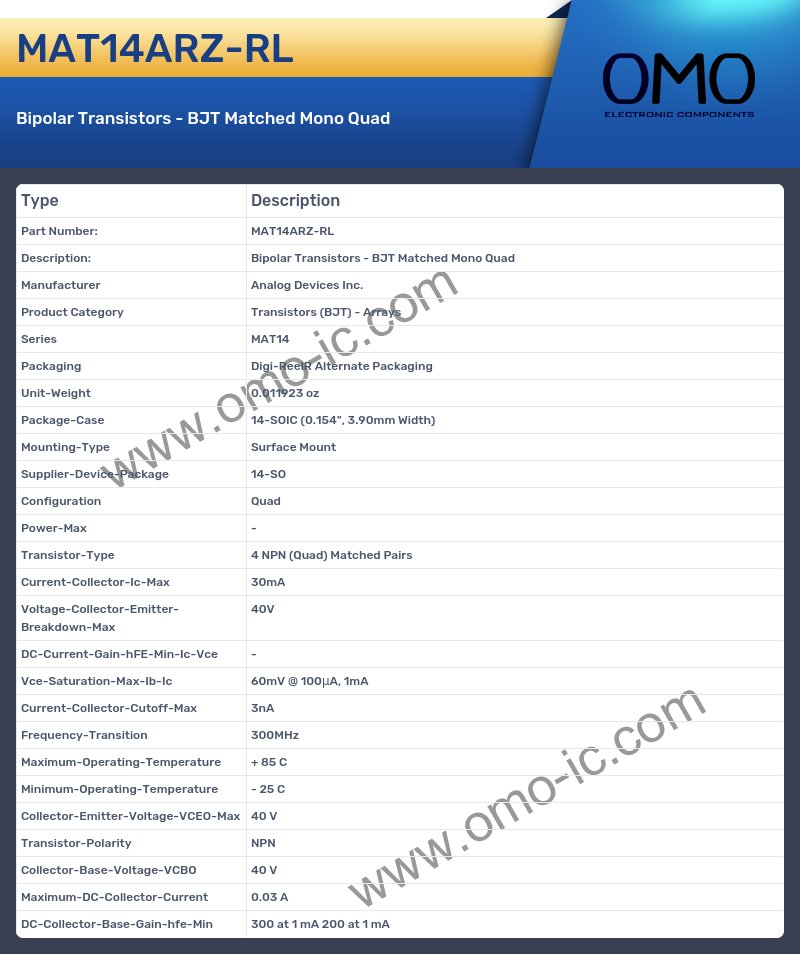

MAT14ARZ-RL Specifications

• Manufacturer Analog Devices Inc.
• Product Category Transistors (BJT) - Arrays
• Series MAT14
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.011923 oz
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Mounting-Type Surface Mount
• Supplier-Device-Package 14-SO
• Configuration Quad
• Power-Max -
• Transistor-Type 4 NPN (Quad) Matched Pairs
• Current-Collector-Ic-Max 30mA
• Voltage-Collector-Emitter-Breakdown-Max 40V
• DC-Current-Gain-hFE-Min-Ic-Vce -
• Vce-Saturation-Max-Ib-Ic 60mV @ 100μA, 1mA
• Current-Collector-Cutoff-Max 3nA
• Frequency-Transition 300MHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Collector-Emitter-Voltage-VCEO-Max 40 V
• Transistor-Polarity NPN
• Collector-Base-Voltage-VCBO 40 V
• Maximum-DC-Collector-Current 0.03 A
• DC-Collector-Base-Gain-hfe-Min 300 at 1 mA 200 at 1 mA
