LTC3202EDD

LTC3202EDD Overview

Product belongs to the - series. Type: DC DC Regulator Tube is the packaging method for this product 10-WFDFN Exposed Pad This product's 1.5MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 10-DFN (3x3) Number-of-Outputs: 1 Current-Output-Channel is 125mA This product has Yes. Topology: Switched Capacitor (Charge Pump) feedback The maximum voltage supply is 4.5V. The minimum 2.7V required for voltage supply. Output voltage: - Dimming control is done through PWM communication.

LTC3202EDD Image

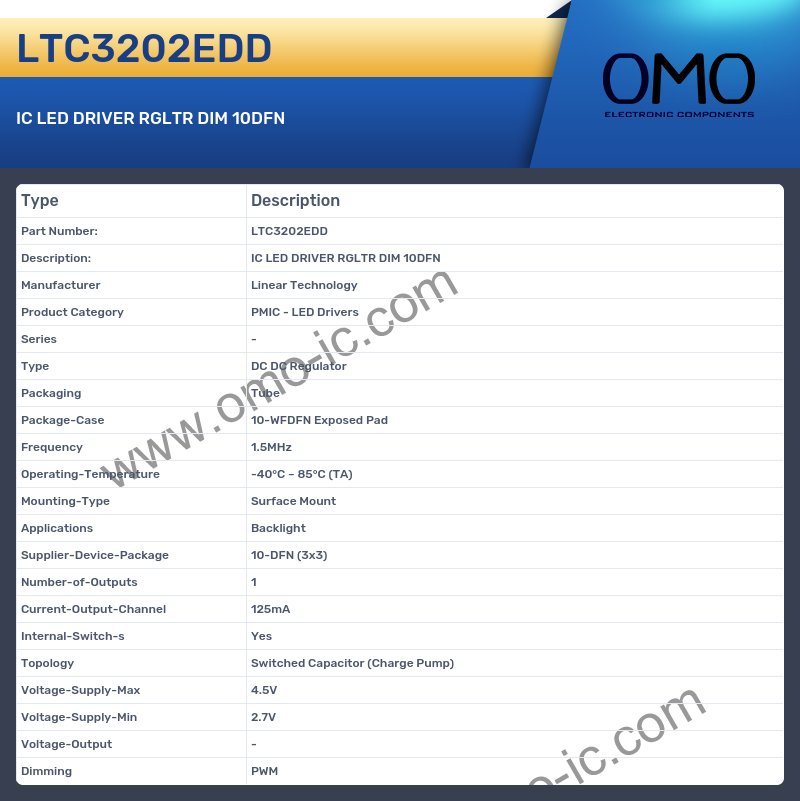

LTC3202EDD Specifications

• Manufacturer Linear Technology
• Product Category PMIC - LED Drivers
• Series -
• Type DC DC Regulator
• Packaging Tube
• Package-Case 10-WFDFN Exposed Pad
• Frequency 1.5MHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 10-DFN (3x3)
• Number-of-Outputs 1
• Current-Output-Channel 125mA
• Internal-Switch-s Yes
• Topology Switched Capacitor (Charge Pump)
• Voltage-Supply-Max 4.5V
• Voltage-Supply-Min 2.7V
• Voltage-Output -
• Dimming PWM
