LT3760EFE

LT3760EFE Overview

Product belongs to the - series. Type: DC DC Controller Tube Alternate Packaging is the packaging method for this product 28-TSSOP (0.173", 4.40mm Width) Exposed Pad This product's 100kHz ~ 1MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 28-TSSOP-EP Number-of-Outputs: 8 Current-Output-Channel is 100mA This product has No. Topology: Step-Up (Boost) feedback The maximum voltage supply is 40V. The minimum 6V required for voltage supply. Output voltage: 6.95V Dimming control is done through Analog, PWM communication.

LT3760EFE Image

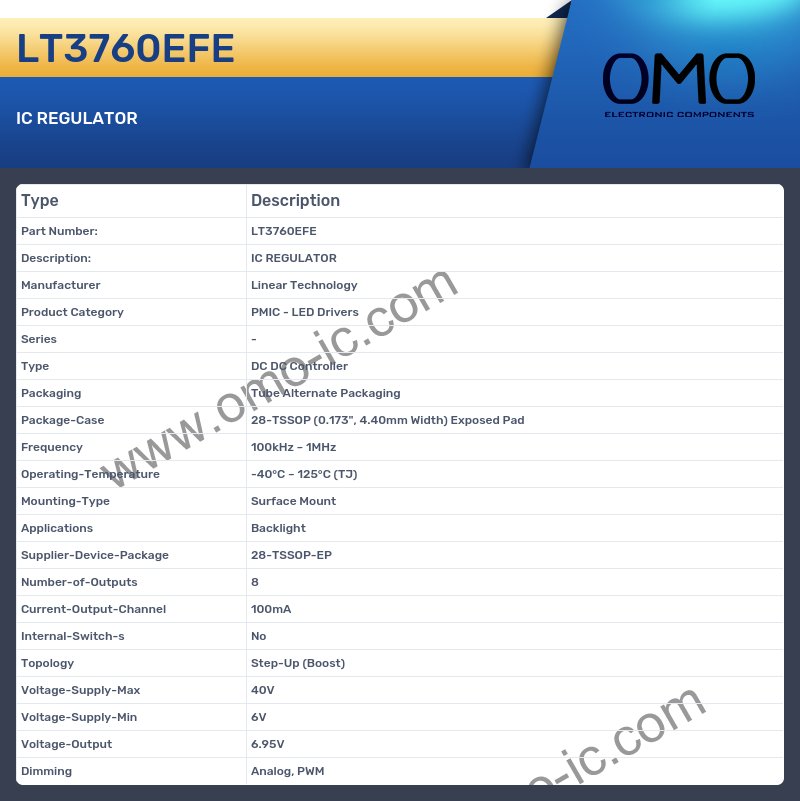

LT3760EFE Specifications

• Manufacturer Linear Technology
• Product Category PMIC - LED Drivers
• Series -
• Type DC DC Controller
• Packaging Tube Alternate Packaging
• Package-Case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
• Frequency 100kHz ~ 1MHz
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 28-TSSOP-EP
• Number-of-Outputs 8
• Current-Output-Channel 100mA
• Internal-Switch-s No
• Topology Step-Up (Boost)
• Voltage-Supply-Max 40V
• Voltage-Supply-Min 6V
• Voltage-Output 6.95V
• Dimming Analog, PWM
