LP3985IM5-2.5

LP3985IM5-2.5 Overview

Product belongs to the LP3985 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 2.5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 250 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.5 V Maximum Input Voltage: 6 V Output current: 0.15 A The product's 2.5 V is 5.1 V. The voltage regulation accuracy of this product is +/- 2 %. Input bias current of 155 uA This product has a 250 uA of 7 mA, making it ideal for low-power applications. The 0.0004 V at 1 mA 0.02 V at 50 mA 0.045 V at 100 mA 0.06 V at 150 mA. The maximum 0.002 V at 1 mA 0.035 V at 50 mA 0.07 V at 100 mA 0.1 V at 150 mA is 360 mV.

LP3985IM5-2.5 Image

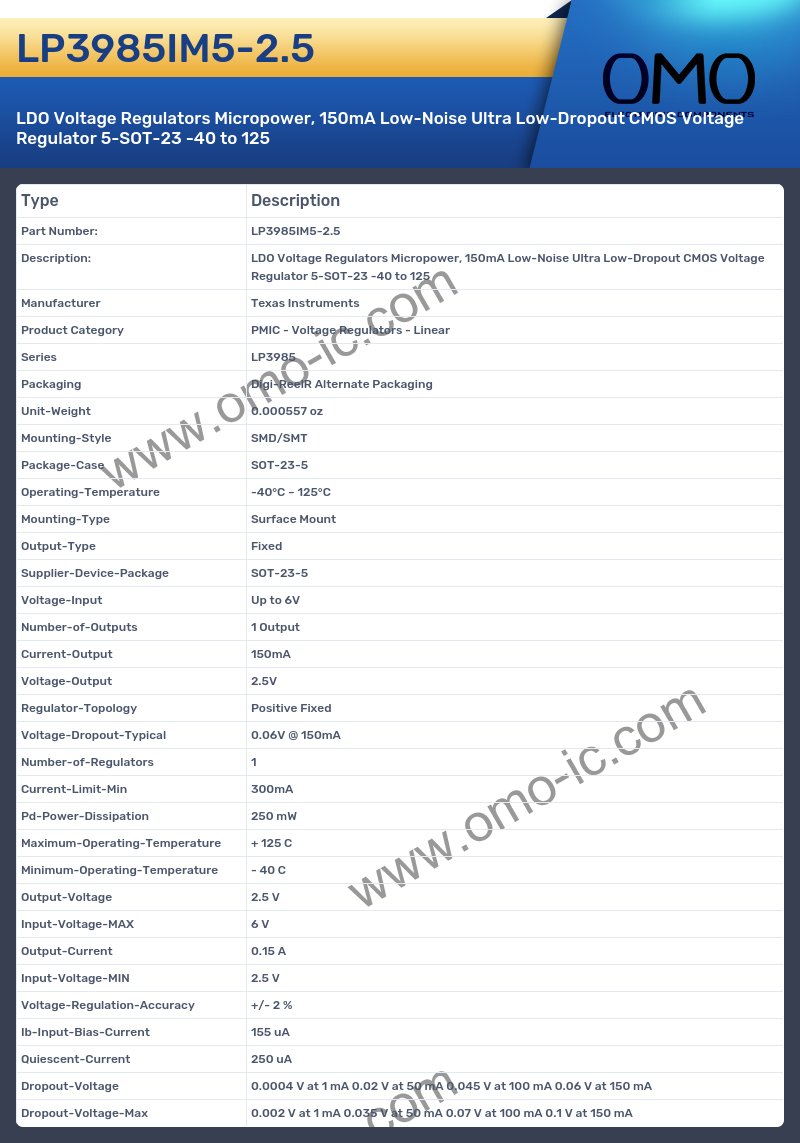

LP3985IM5-2.5 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP3985
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 2.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.06V @ 150mA
• Number-of-Regulators 1
• Current-Limit-Min 300mA
• Pd-Power-Dissipation 250 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.5 V
• Input-Voltage-MAX 6 V
• Output-Current 0.15 A
• Input-Voltage-MIN 2.5 V
• Voltage-Regulation-Accuracy +/- 2 %
• Ib-Input-Bias-Current 155 uA
• Quiescent-Current 250 uA
• Dropout-Voltage 0.0004 V at 1 mA 0.02 V at 50 mA 0.045 V at 100 mA 0.06 V at 150 mA
• Dropout-Voltage-Max 0.002 V at 1 mA 0.035 V at 50 mA 0.07 V at 100 mA 0.1 V at 150 mA
