LP38843SX-1.2

LP38843SX-1.2 Overview

Product belongs to the LP38843 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.056128 oz SMD/SMT Mounting-Style TO-263-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: DDPAK/TO-263-5 Up to 5.5V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V Maximum Input Voltage: 5.5 V Output current: 3 A The product's 1.01 V is 5.1 V. Load regulation is 0.4 %/A. The voltage regulation accuracy of this product is +/- 1.5 %. Input bias current of 30 mA This product has a 35 mA of 7 mA, making it ideal for low-power applications. The 0.21 V at 3 A. The maximum 0.27 V at 3 A is 360 mV. This product's 0.01 %/V is 0.01 %/V.

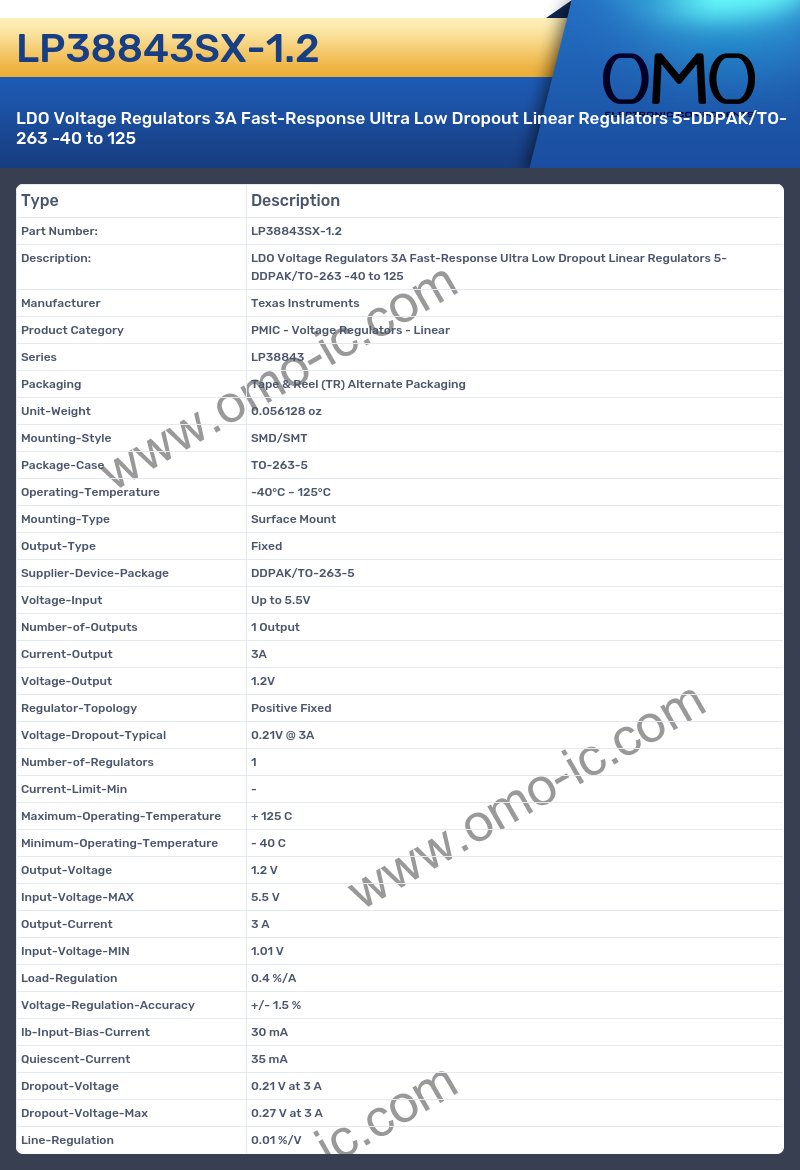

LP38843SX-1.2 Image

LP38843SX-1.2 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP38843
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.056128 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package DDPAK/TO-263-5
• Voltage-Input Up to 5.5V
• Number-of-Outputs 1 Output
• Current-Output 3A
• Voltage-Output 1.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.21V @ 3A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V
• Input-Voltage-MAX 5.5 V
• Output-Current 3 A
• Input-Voltage-MIN 1.01 V
• Load-Regulation 0.4 %/A
• Voltage-Regulation-Accuracy +/- 1.5 %
• Ib-Input-Bias-Current 30 mA
• Quiescent-Current 35 mA
• Dropout-Voltage 0.21 V at 3 A
• Dropout-Voltage-Max 0.27 V at 3 A
• Line-Regulation 0.01 %/V
