LP2989IM-5.0

LP2989IM-5.0 Overview

Product belongs to the LP2989 series. Tube is the packaging method for this product Weight of 0.006596 oz SMD/SMT Mounting-Style SOIC-Narrow-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Up to 16V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 16 V Output current: 0.5 A The product's 2.1 V is 5.1 V. Load regulation is 0.4 %. The voltage regulation accuracy of this product is +/- 1.25 %. Input bias current of 110 uA The 0.001 V at 0.1 mA 0.15 V at 200 mA 0.31 V at 500 mA. The maximum 0.003 V at 0.1 mA 0.2 V at 200 mA 0.425 V at 500 mA is 360 mV. This product's 0.014 %/V is 0.01 %/V.

LP2989IM-5.0 Image

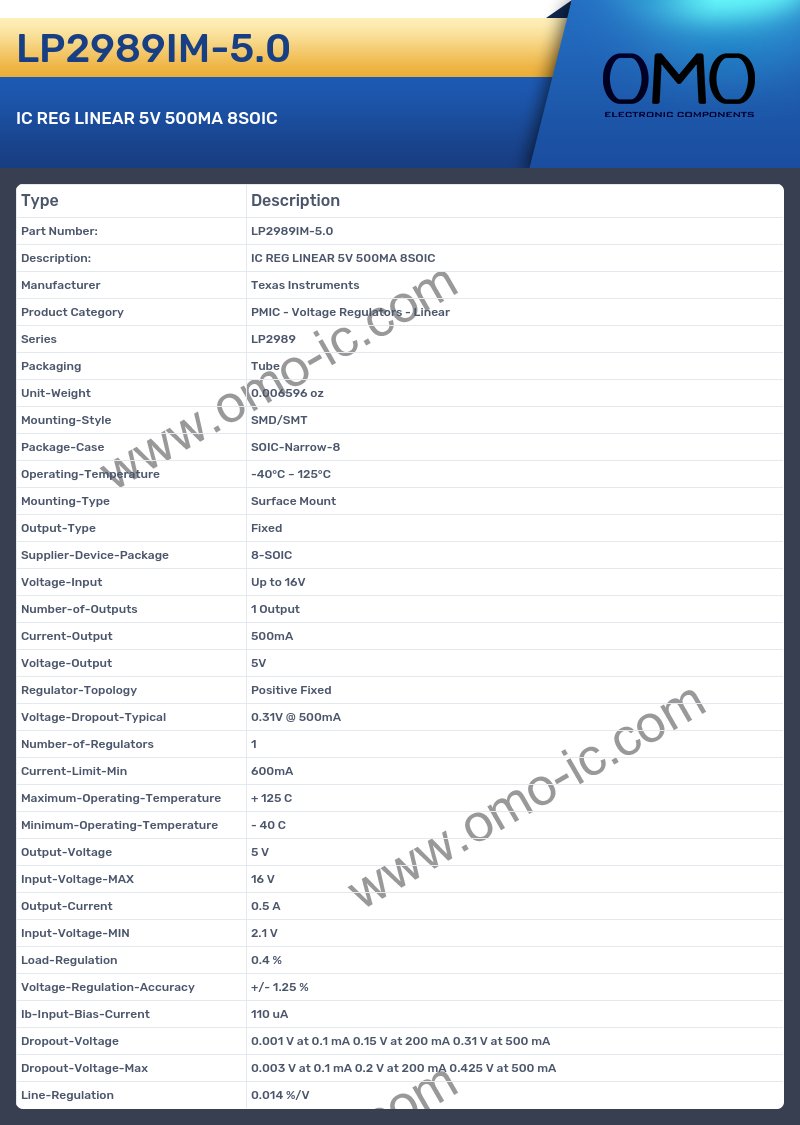

LP2989IM-5.0 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP2989
• Packaging Tube
• Unit-Weight 0.006596 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-Narrow-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Voltage-Input Up to 16V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.31V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min 600mA
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 16 V
• Output-Current 0.5 A
• Input-Voltage-MIN 2.1 V
• Load-Regulation 0.4 %
• Voltage-Regulation-Accuracy +/- 1.25 %
• Ib-Input-Bias-Current 110 uA
• Dropout-Voltage 0.001 V at 0.1 mA 0.15 V at 200 mA 0.31 V at 500 mA
• Dropout-Voltage-Max 0.003 V at 0.1 mA 0.2 V at 200 mA 0.425 V at 500 mA
• Line-Regulation 0.014 %/V
