LP2951ACM-3.3 Overview

Product belongs to the LP2951-N series. Tube is the packaging method for this product Weight of 0.006596 oz SMD/SMT Mounting-Style SOIC-Narrow-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC 2.3 V ~ 30 V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V, 1.24 V ~ 29 V Positive Fixed or Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Maximum Input Voltage: 30 V Output current: 0.1 A Load regulation is 0.1 %. The voltage regulation accuracy of this product is +/- 0.5 %. Input bias current of 75 uA Reference voltage is 1.25 V . The 0.05 V at 100 uA 0.38 V at 100 mA. The maximum 0.08 V at 100 uA 0.45 V at 100 mA is 360 mV. This product's 0.1 % is 0.01 %/V.

LP2951ACM-3.3 Image

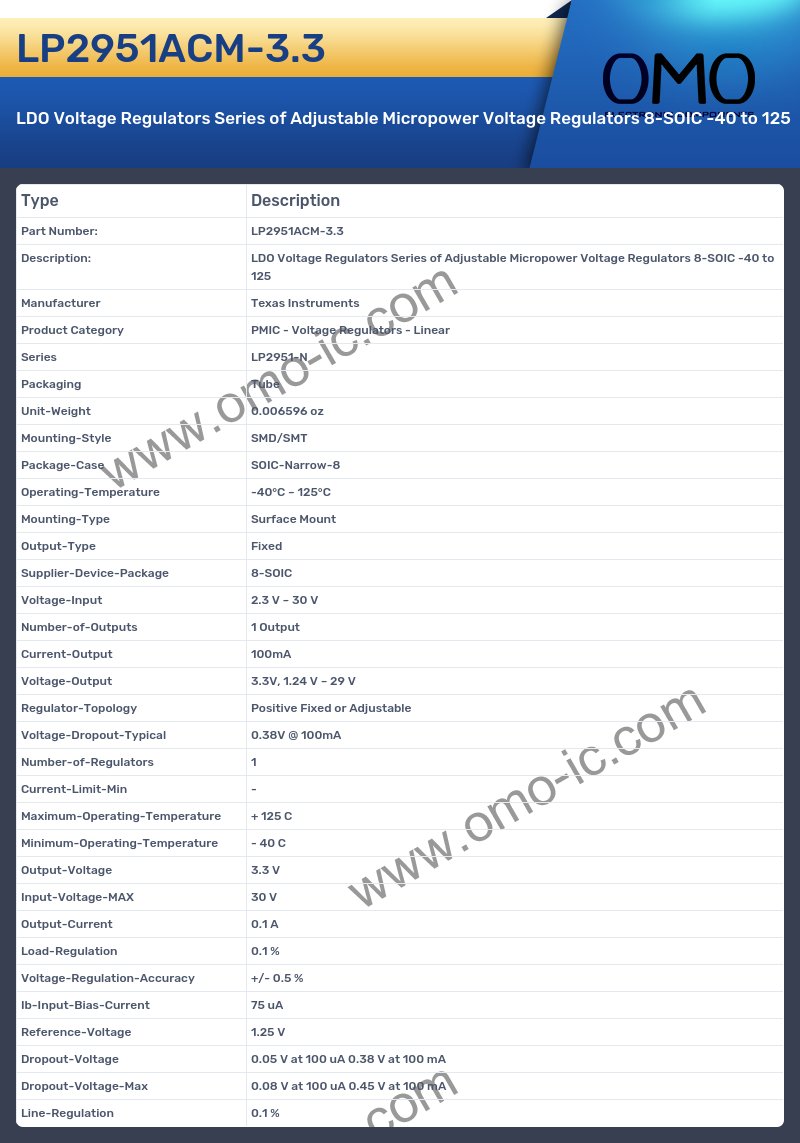

LP2951ACM-3.3 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP2951-N
• Packaging Tube
• Unit-Weight 0.006596 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-Narrow-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Voltage-Input 2.3 V ~ 30 V
• Number-of-Outputs 1 Output
• Current-Output 100mA
• Voltage-Output 3.3V, 1.24 V ~ 29 V
• Regulator-Topology Positive Fixed or Adjustable
• Voltage-Dropout-Typical 0.38V @ 100mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 30 V
• Output-Current 0.1 A
• Load-Regulation 0.1 %
• Voltage-Regulation-Accuracy +/- 0.5 %
• Ib-Input-Bias-Current 75 uA
• Reference-Voltage 1.25 V
• Dropout-Voltage 0.05 V at 100 uA 0.38 V at 100 mA
• Dropout-Voltage-Max 0.08 V at 100 uA 0.45 V at 100 mA
• Line-Regulation 0.1 %
