LMS1585ACS-3.3

LMS1585ACS-3.3 Overview

Product belongs to the LMS1585A series. Tube is the packaging method for this product Weight of 0.068654 oz SMD/SMT Mounting-Style TO-263-3 Operational temperature range: 0°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: DDPAK/TO-263-3 Up to 13V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: 0 C Output voltage: 3.3 V Maximum Input Voltage: 13 V Output current: 5 A The product's 2.5 V is 5.1 V. Load regulation is 0.3 %. Input bias current of 7 mA This product has a 13 mA of 7 mA, making it ideal for low-power applications. The 1.15 V at 3 A 1.2 V at 5 A. The maximum 1.3 V at 3 A 1.4 V at 5 A is 360 mV. This product's 0.005 % is 0.01 %/V.

LMS1585ACS-3.3 Image

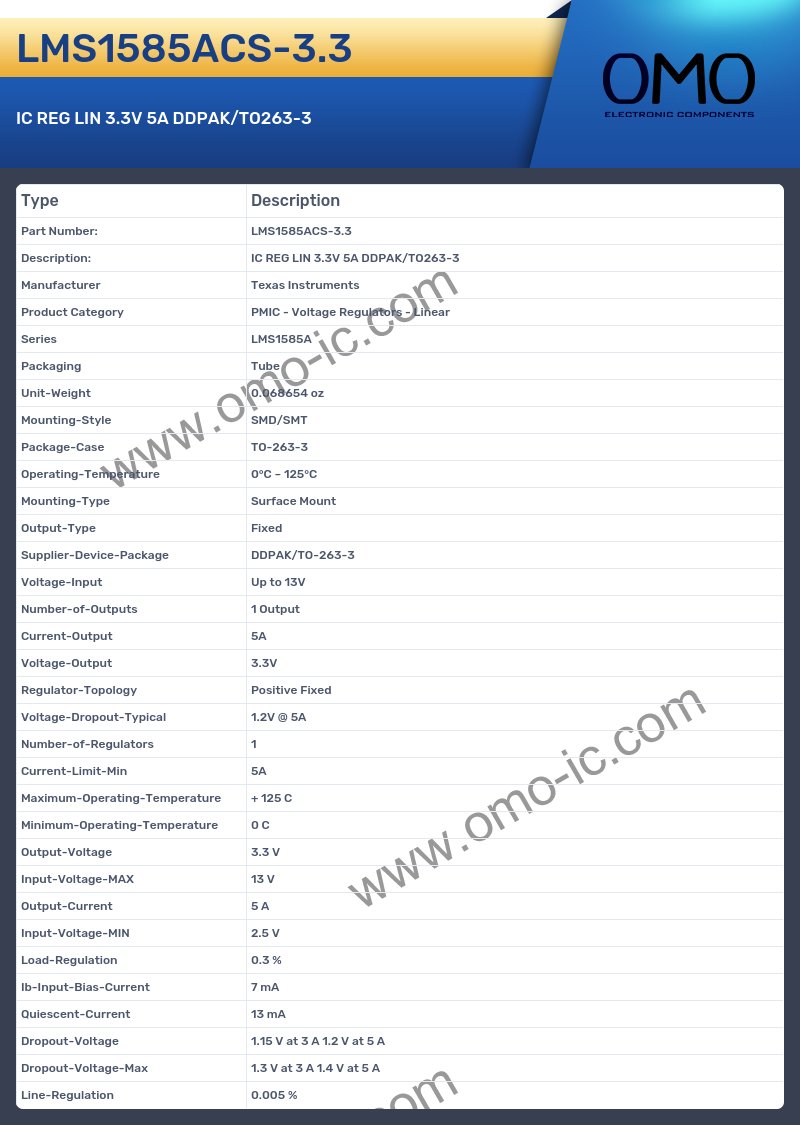

LMS1585ACS-3.3 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LMS1585A
• Packaging Tube
• Unit-Weight 0.068654 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3
• Operating-Temperature 0°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package DDPAK/TO-263-3
• Voltage-Input Up to 13V
• Number-of-Outputs 1 Output
• Current-Output 5A
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1.2V @ 5A
• Number-of-Regulators 1
• Current-Limit-Min 5A
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 13 V
• Output-Current 5 A
• Input-Voltage-MIN 2.5 V
• Load-Regulation 0.3 %
• Ib-Input-Bias-Current 7 mA
• Quiescent-Current 13 mA
• Dropout-Voltage 1.15 V at 3 A 1.2 V at 5 A
• Dropout-Voltage-Max 1.3 V at 3 A 1.4 V at 5 A
