LMR14020SDDA

LMR14020SDDA Overview

Product belongs to the SIMPLE SWITCHERR series. Type: Step-Down Converter Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications SOIC-8 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SO PowerPad Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 200kHz ~ 2.5MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.8V . The value of No is included as a product attribute. The minimum input voltage is 4V. The 40V. Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 36 V 40 uA is 92 nA. Input Voltage Range: 4 V to 40 V Maximum Input Voltage: 40 V Output current: 2 A Switching frequency is 2.2 MHz The product's 4 V is 5.1 V. Minimum supply voltage is 4 V

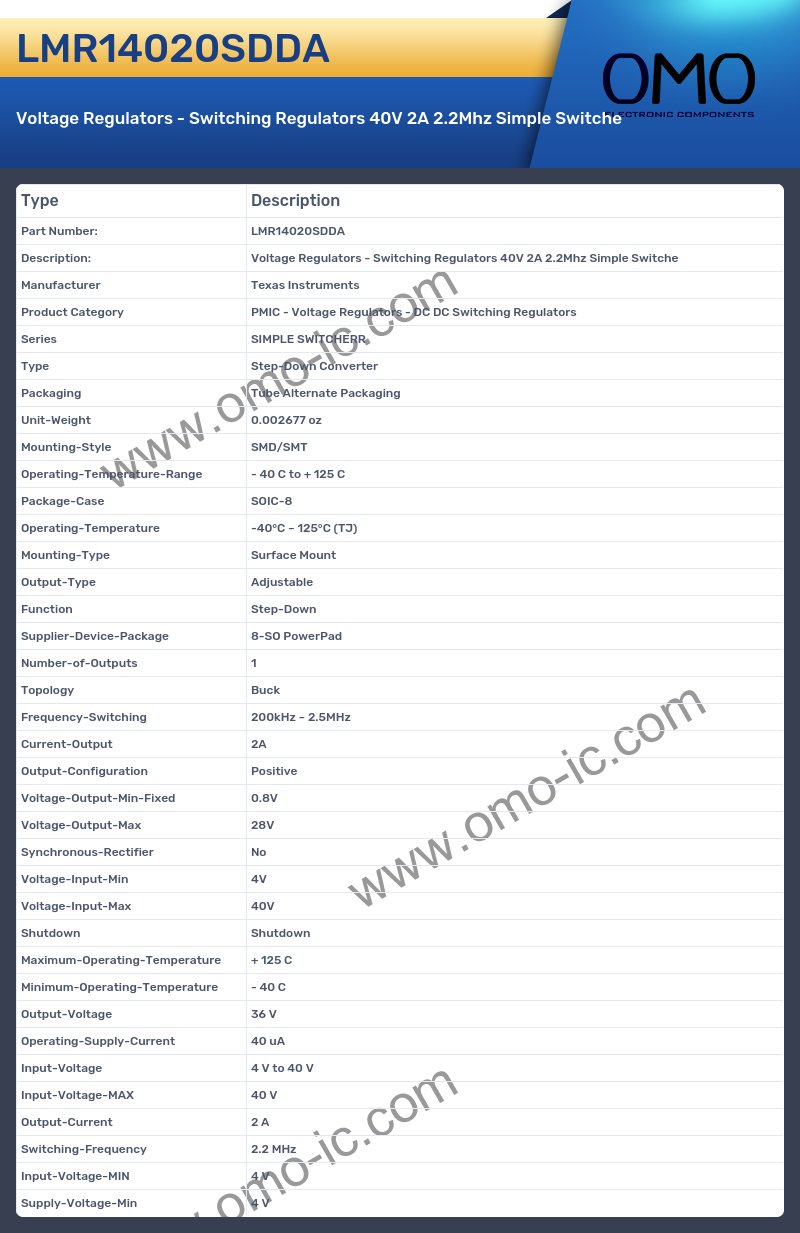

LMR14020SDDA Image

LMR14020SDDA Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SIMPLE SWITCHERR
• Type Step-Down Converter
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-SO PowerPad
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 200kHz ~ 2.5MHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.8V
• Voltage-Output-Max 28V
• Synchronous-Rectifier No
• Voltage-Input-Min 4V
• Voltage-Input-Max 40V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 36 V
• Operating-Supply-Current 40 uA
• Input-Voltage 4 V to 40 V
• Input-Voltage-MAX 40 V
• Output-Current 2 A
• Switching-Frequency 2.2 MHz
• Input-Voltage-MIN 4 V
• Supply-Voltage-Min 4 V
