LMH6574MA

LMH6574MA Overview

Product belongs to the LMH6574 series. This product is categorized as Multiplexers Tube is the packaging method for this product Weight of 0.008501 oz SMD/SMT Mounting-Style Trade name: LMH. SOIC-14 Narrow Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Video Multiplexer. Number of channels: 4 Channel Supplier device package: 14-SOICN - is 8. Voltage supply source: Analog and digital Single, Dual Supply Configuration 1 x 4 Circuit type: 1 x 4:1 - maximum on-state resistance Voltage supply range: 6 V ~ 12 V, ±3 V ~ 6 V This product has a 13mA of 200μA. The - 500 MHz bandwidth Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 9 V supply voltage for reliable performance. Maximum supply current: 16 mA at +/- 5 V The LMH730276. Maximum supply voltage of 12 V Minimum supply voltage is 6 V Maximum dual supply voltage: +/- 6 V Single Supply Dual Supply supply type Maximum off time: 10 ns Maximum on-time: 10 ns

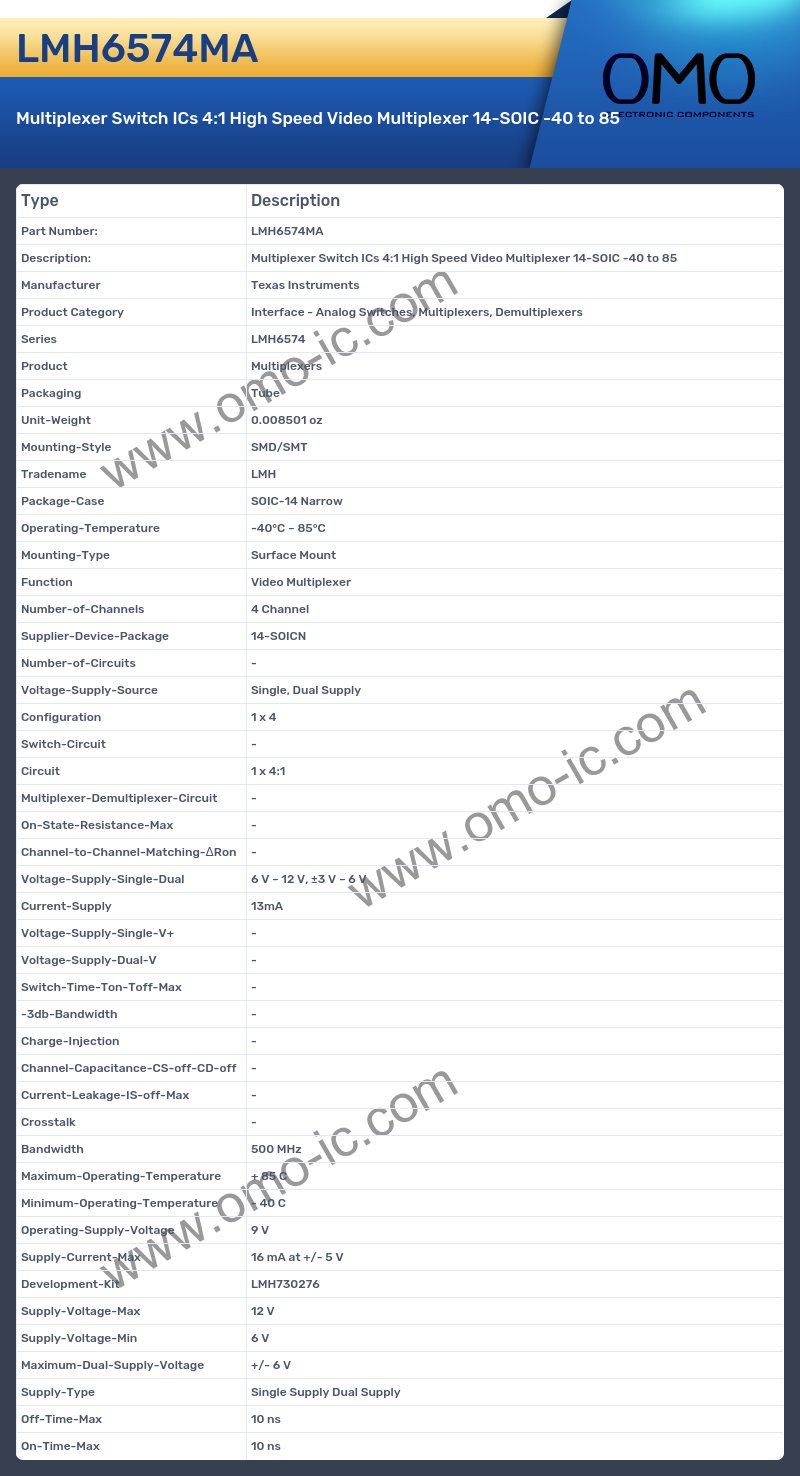

LMH6574MA Image

LMH6574MA Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series LMH6574
• Product Multiplexers
• Packaging Tube
• Unit-Weight 0.008501 oz
• Mounting-Style SMD/SMT
• Tradename LMH
• Package-Case SOIC-14 Narrow
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Video Multiplexer
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOICN
• Number-of-Circuits -
• Voltage-Supply-Source Single, Dual Supply
• Configuration 1 x 4
• Switch-Circuit -
• Circuit 1 x 4:1
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max -
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 6 V ~ 12 V, ±3 V ~ 6 V
• Current-Supply 13mA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 500 MHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 9 V
• Supply-Current-Max 16 mA at +/- 5 V
• Development-Kit LMH730276
• Supply-Voltage-Max 12 V
• Supply-Voltage-Min 6 V
• Maximum-Dual-Supply-Voltage +/- 6 V
• Supply-Type Single Supply Dual Supply
• Off-Time-Max 10 ns
• On-Time-Max 10 ns
