LMD18200T

LMD18200T Overview

Product belongs to the LMD18200 series. This product is categorized as Stepper Motor Controllers / Drivers Type: H-Bridge Tube is the packaging method for this product Through Hole Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications TO-220-11 Bi-CMOS, DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Through Hole mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 12 V ~ 55 V Supplier device package: TO-220-11 The Low Side (2). Voltage-Load range is 12 V ~ 55 V. Brushed DC motor type is used for high-performance and efficient operation. This product operates at a 12 V to 55 V supply voltage for reliable performance. 13 mA is 92 nA. Output current: 3 A

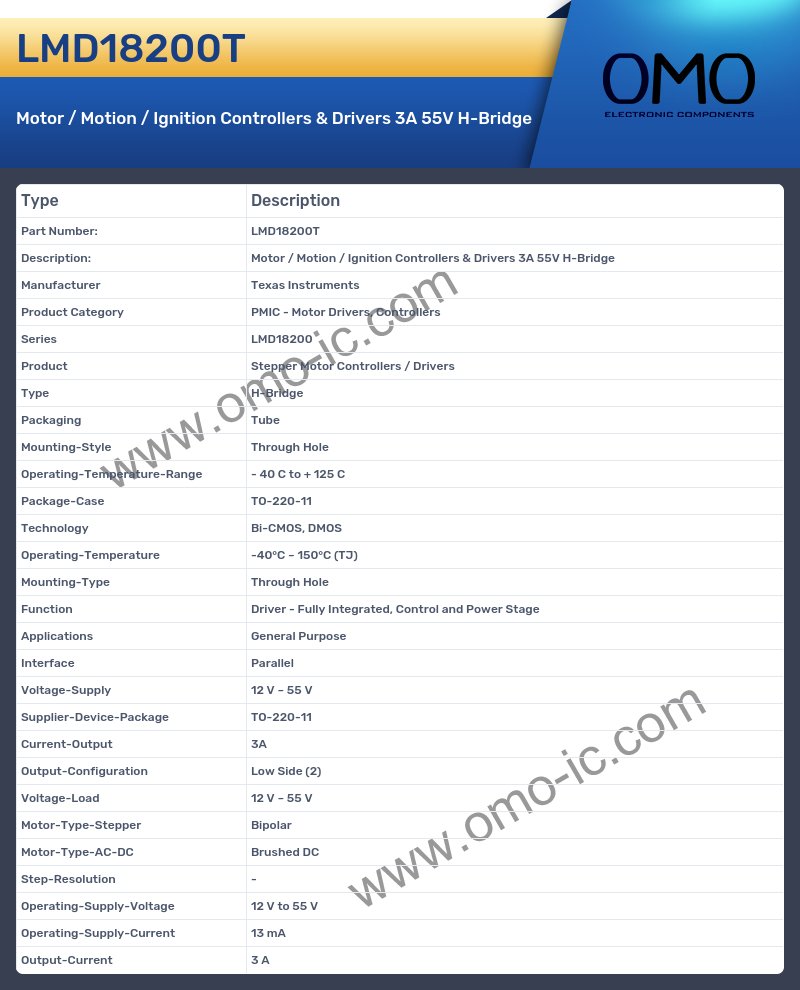

LMD18200T Image

LMD18200T Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Motor Drivers, Controllers
• Series LMD18200
• Product Stepper Motor Controllers / Drivers
• Type H-Bridge
• Packaging Tube
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case TO-220-11
• Technology Bi-CMOS, DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 12 V ~ 55 V
• Supplier-Device-Package TO-220-11
• Current-Output 3A
• Output-Configuration Low Side (2)
• Voltage-Load 12 V ~ 55 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
• Operating-Supply-Voltage 12 V to 55 V
• Operating-Supply-Current 13 mA
• Output-Current 3 A
