LM78M05CH

LM78M05CH Overview

Product belongs to the LM78M05 series. This product is categorized as Voltage Regulators Type: 3 Terminal Positive Regulator Bulk is the packaging method for this product Through Hole Mounting-Style TO-39 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO (NDT) 7.2 V ~ 35 V voltage input Number-of-Outputs: 1 Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Positive Output voltage: 5 V Maximum Input Voltage: 35 V Output current: 500 mA The product's 7.2 V is 5.1 V. Load regulation is 100 mV. This product has a 10 mA of 7 mA, making it ideal for low-power applications. This product's 100 mV is 0.01 %/V. The product's 78 dB is -20 dB.

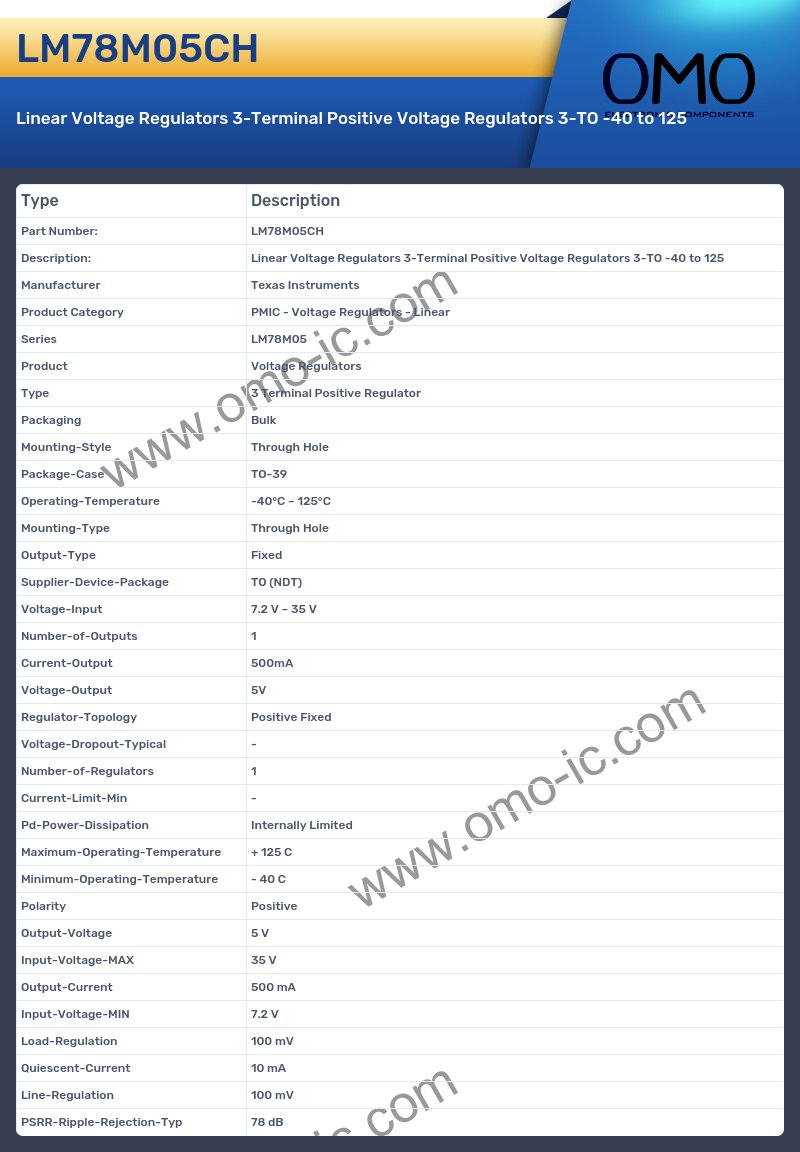

LM78M05CH Image

LM78M05CH Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LM78M05
• Product Voltage Regulators
• Type 3 Terminal Positive Regulator
• Packaging Bulk
• Mounting-Style Through Hole
• Package-Case TO-39
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO (NDT)
• Voltage-Input 7.2 V ~ 35 V
• Number-of-Outputs 1
• Current-Output 500mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Positive
• Output-Voltage 5 V
• Input-Voltage-MAX 35 V
• Output-Current 500 mA
• Input-Voltage-MIN 7.2 V
• Load-Regulation 100 mV
• Quiescent-Current 10 mA
• Line-Regulation 100 mV
• PSRR-Ripple-Rejection-Typ 78 dB
