LM6511IM

LM6511IM Overview

Product belongs to the LM6511 series. This product is categorized as Analog Comparators Type: General Purpose Tube is the packaging method for this product Weight of 0.005044 oz SMD/SMT Mounting-Style SOIC-8 Narrow Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CMOS, Open-Collector, TTL Number of channels: 1 Channel Supplier device package: 8-SOIC Voltage supply range: 2.5 V ~ 30 V 1 element 3.5mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 180 ns response time Power-off control: Shutdown Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 3.5 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 2.5 V General Purpose comparator type Input bias current of 130 nA The 5 mV. The CMRR-Common-Mode-Rejection-Ratio is 72 dB.

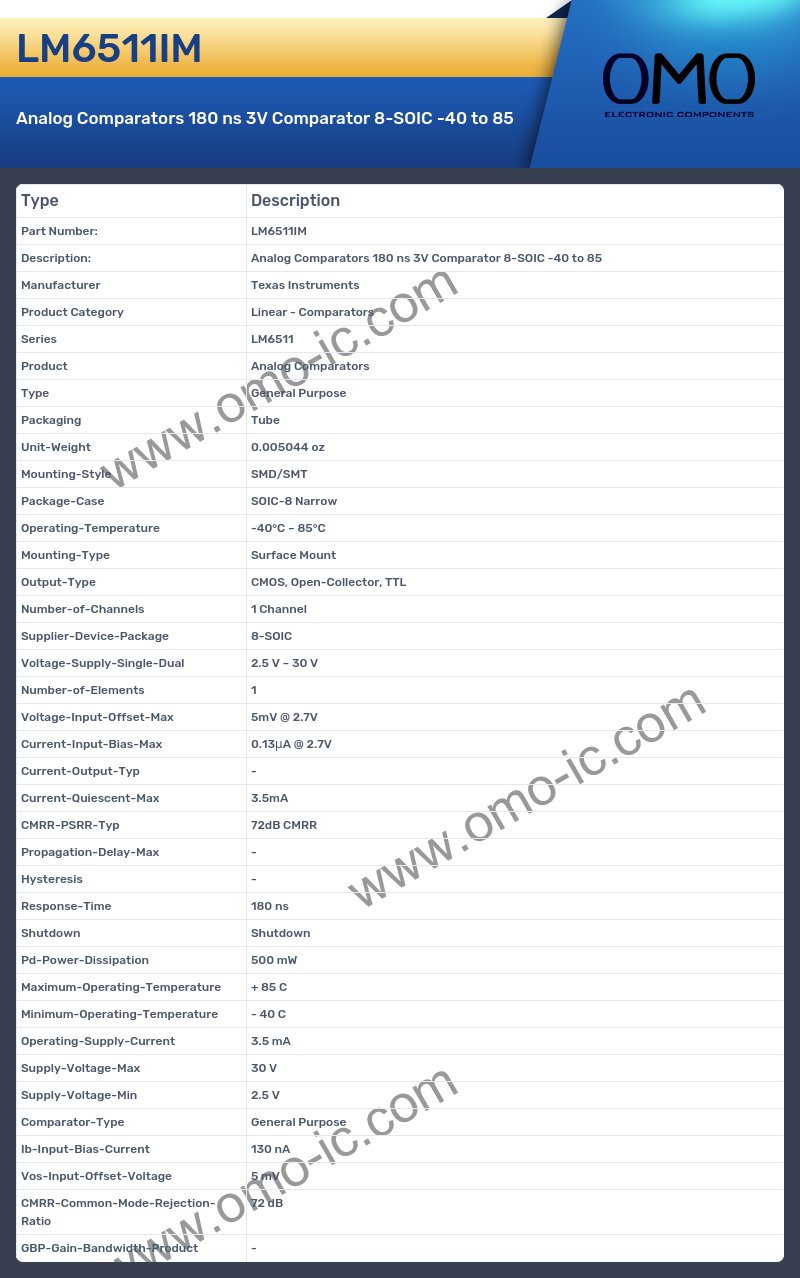

LM6511IM Image

LM6511IM Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LM6511
• Product Analog Comparators
• Type General Purpose
• Packaging Tube
• Unit-Weight 0.005044 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8 Narrow
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Open-Collector, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 2.5 V ~ 30 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 5mV @ 2.7V
• Current-Input-Bias-Max 0.13μA @ 2.7V
• Current-Output-Typ -
• Current-Quiescent-Max 3.5mA
• CMRR-PSRR-Typ 72dB CMRR
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 180 ns
• Shutdown Shutdown
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3.5 mA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 2.5 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 130 nA
• Vos-Input-Offset-Voltage 5 mV
• CMRR-Common-Mode-Rejection-Ratio 72 dB
• GBP-Gain-Bandwidth-Product -
