LM556CN/NOPB

LM556CN/NOPB Overview

Product belongs to the LM556 series. Type: 555 Type, Timer/Oscillator (Dual) Tube is the packaging method for this product Weight of 0.057144 oz Through Hole Mounting-Style PDIP-14 This product's - range is 0Hz to 2.2GHz. Operational temperature range: 0°C ~ 70°C Through Hole mounting type Voltage Supply Range: 4.5 V ~ 16 V Supplier device package: 14-DIP This product has a 10mA of 200μA. Power-off control: 1620 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 3000 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 4.5 V High-Level-Output-Current of 200 mA - 200 mA low-level output current 2 Timer Internal Timers

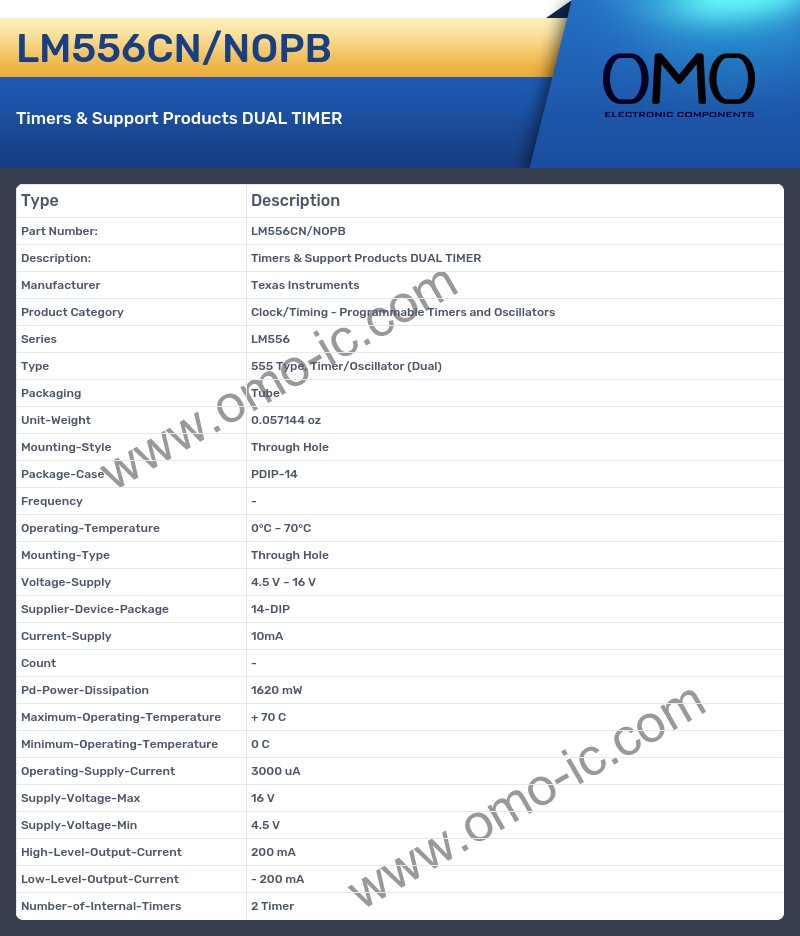

LM556CN/NOPB Image

LM556CN/NOPB Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series LM556
• Type 555 Type, Timer/Oscillator (Dual)
• Packaging Tube
• Unit-Weight 0.057144 oz
• Mounting-Style Through Hole
• Package-Case PDIP-14
• Frequency -
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Voltage-Supply 4.5 V ~ 16 V
• Supplier-Device-Package 14-DIP
• Current-Supply 10mA
• Count -
• Pd-Power-Dissipation 1620 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 3000 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4.5 V
• High-Level-Output-Current 200 mA
• Low-Level-Output-Current - 200 mA
• Number-of-Internal-Timers 2 Timer
