LM5001SD Overview

Product belongs to the - series. Digi-ReelR Alternate Packaging is the packaging method for this product 8-WDFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 8-WSON (4x4) Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter, SEPIC feedback This product features 'Frequency-Switching' at 50kHz ~ 1.5MHz for optimal performance. The Positive, Isolation Capable. Minimum fixed output voltage is 3.1V . The value of No is included as a product attribute. The minimum input voltage is 3.1V. The 75V.

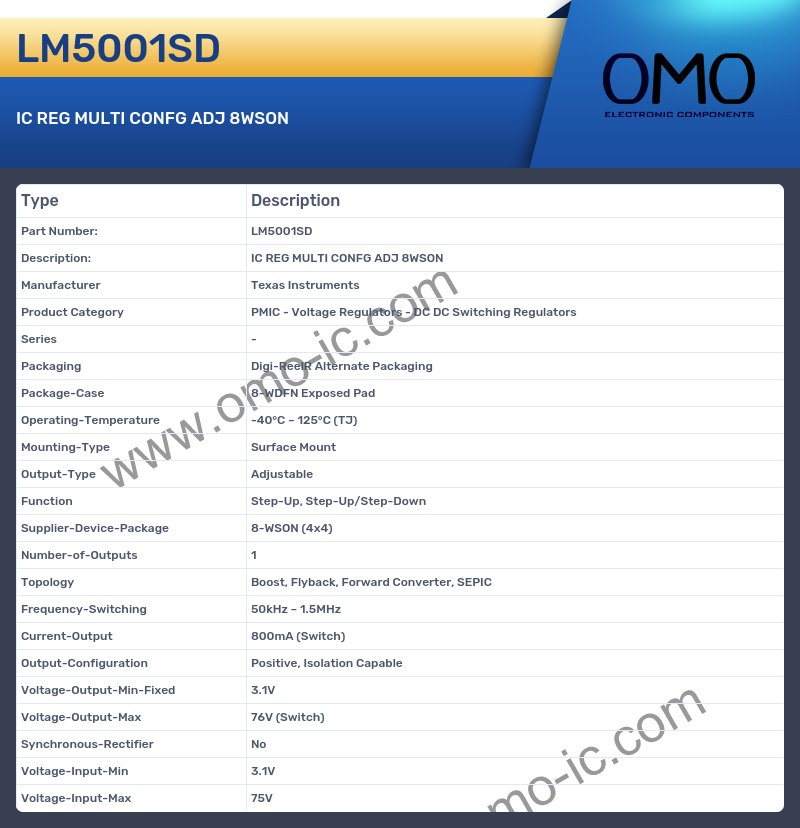

LM5001SD Image

LM5001SD Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series -
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 8-WDFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 8-WSON (4x4)
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter, SEPIC
• Frequency-Switching 50kHz ~ 1.5MHz
• Current-Output 800mA (Switch)
• Output-Configuration Positive, Isolation Capable
• Voltage-Output-Min-Fixed 3.1V
• Voltage-Output-Max 76V (Switch)
• Synchronous-Rectifier No
• Voltage-Input-Min 3.1V
• Voltage-Input-Max 75V
