LM3524DN

LM3524DN Overview

Product belongs to the - series. Tube is the packaging method for this product 16-DIP (0.300", 7.62mm) Operational temperature range: 0°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up, Step-Down. Supplier device package: 16-PDIP Number-of-Outputs: 1 Topology: Buck, Boost feedback Supply Voltage: 8 V ~ 40 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control function. The Positive or Negative. Output-Phases: 1 Maximum duty cycle of 0.49 The value of No is included as a product attribute. No enabled Serial Interfaces: -

LM3524DN Image

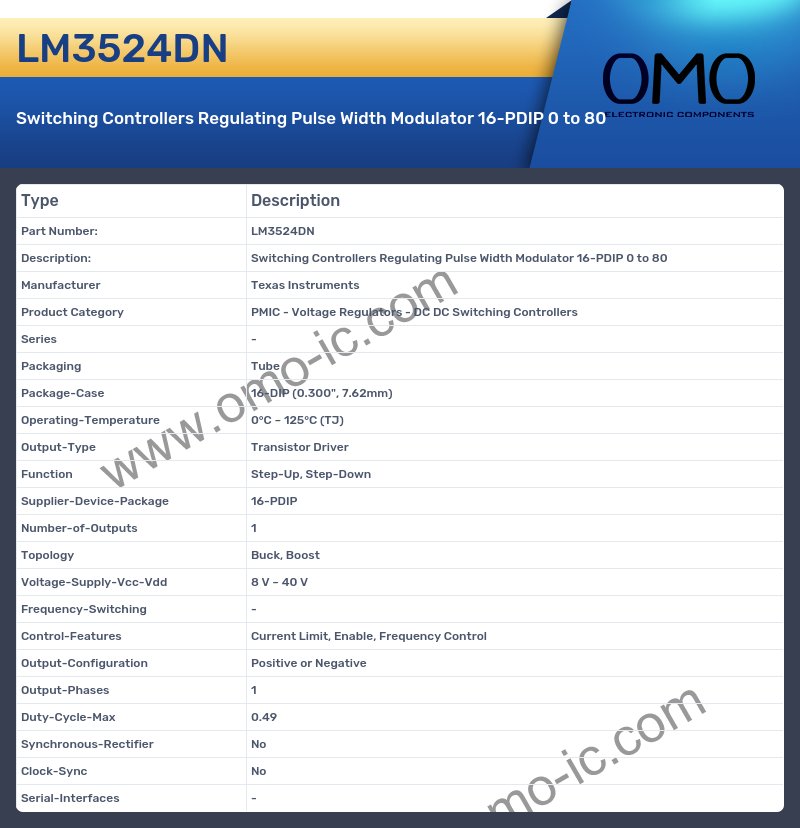

LM3524DN Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 16-DIP (0.300", 7.62mm)
• Operating-Temperature 0°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down
• Supplier-Device-Package 16-PDIP
• Number-of-Outputs 1
• Topology Buck, Boost
• Voltage-Supply-Vcc-Vdd 8 V ~ 40 V
• Frequency-Switching -
• Control-Features Current Limit, Enable, Frequency Control
• Output-Configuration Positive or Negative
• Output-Phases 1
• Duty-Cycle-Max 0.49
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
