LM336MX-5.0

LM336MX-5.0 Overview

Product belongs to the LM336-5.0 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.005044 oz SMD/SMT Mounting-Style SOIC-8 Narrow Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Tolerance of ±2% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 5V . - is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 5 V Initial accuracy: 1 % Maximum shunt current of 10 mA Maximum output voltage is 6 V .

LM336MX-5.0 Image

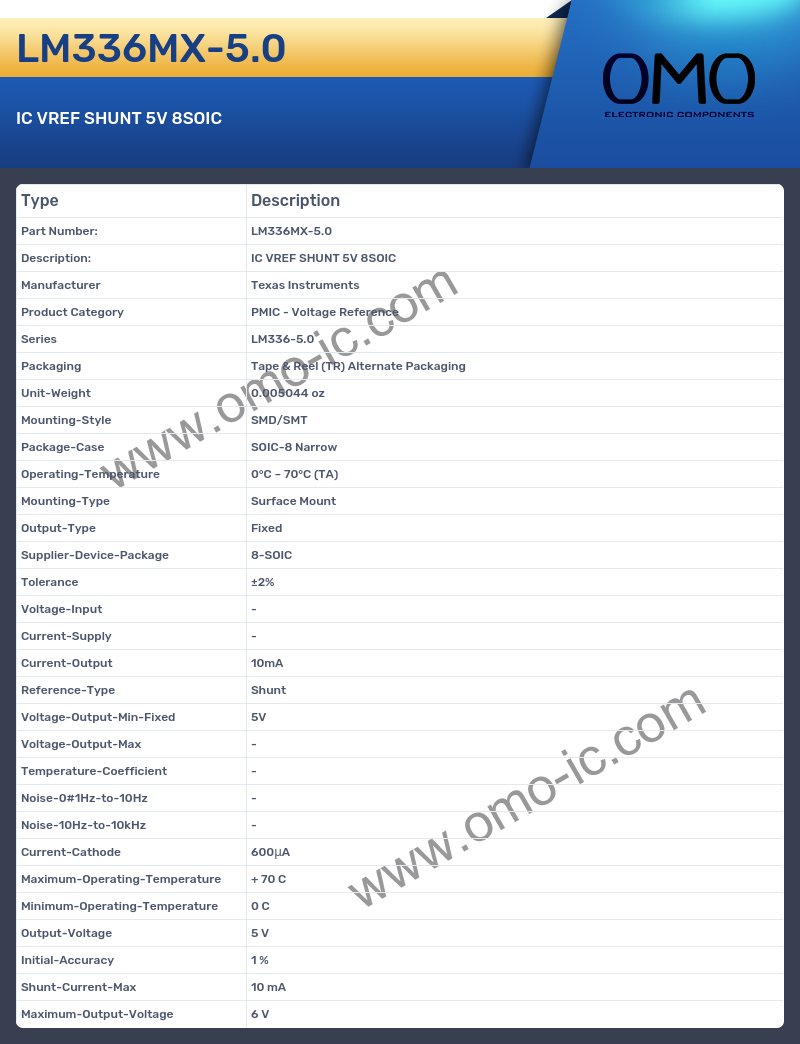

LM336MX-5.0 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series LM336-5.0
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.005044 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8 Narrow
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Tolerance ±2%
• Voltage-Input -
• Current-Supply -
• Current-Output 10mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 5V
• Voltage-Output-Max -
• Temperature-Coefficient -
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 600μA
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 5 V
• Initial-Accuracy 1 %
• Shunt-Current-Max 10 mA
• Maximum-Output-Voltage 6 V
