LM306P

LM306P Overview

Product belongs to the LM306 series. This product is categorized as Analog Comparators Type: Differential Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: Push-Pull, TTL Number of channels: 1 Channel Supplier device package: 8-PDIP Voltage supply range: ±7.5 V ~ 12 V 1 element 10mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 28 ns response time Power-off control: No Shutdown Power-off control: 600 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 10 mA is 92 nA. Maximum supply voltage of 24 V Minimum supply voltage is 15 V Differential comparator type Input bias current of 25 uA The 5 mV. The 5 mA. The - 5 V to 5 V. 100 mA

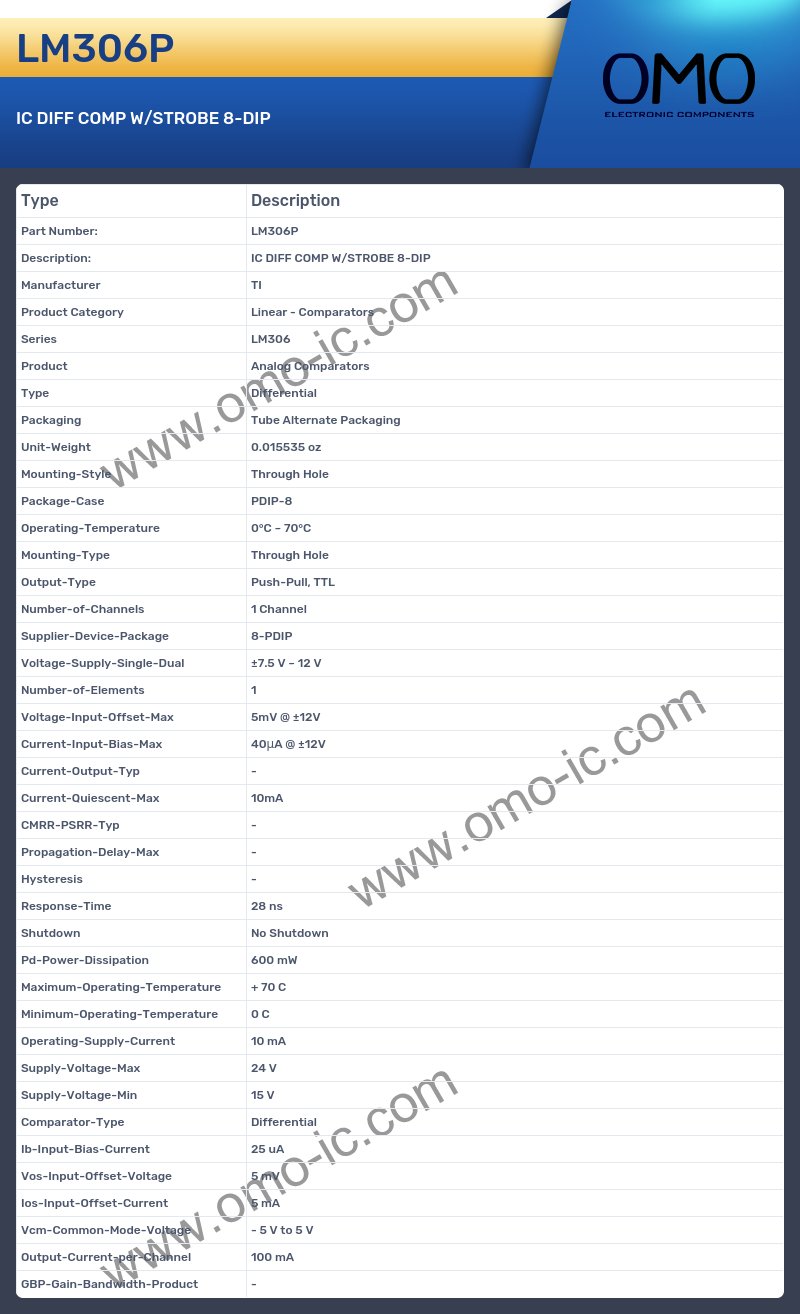

LM306P Image

LM306P Specifications

• Manufacturer TI
• Product Category Linear - Comparators
• Series LM306
• Product Analog Comparators
• Type Differential
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Output-Type Push-Pull, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-PDIP
• Voltage-Supply-Single-Dual ±7.5 V ~ 12 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 5mV @ ±12V
• Current-Input-Bias-Max 40μA @ ±12V
• Current-Output-Typ -
• Current-Quiescent-Max 10mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 28 ns
• Shutdown No Shutdown
• Pd-Power-Dissipation 600 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 10 mA
• Supply-Voltage-Max 24 V
• Supply-Voltage-Min 15 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 25 uA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 5 mA
• Vcm-Common-Mode-Voltage - 5 V to 5 V
• Output-Current-per-Channel 100 mA
• GBP-Gain-Bandwidth-Product -
