LM2940CS-12

LM2940CS-12 Overview

Product belongs to the LM2940C series. Alternate Packaging is the packaging method for this product Weight of 0.068654 oz SMD/SMT Mounting-Style TO-263-3 Operational temperature range: 0°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: DDPAK/TO-263-3 13.6 V ~ 26 V voltage input Number-of-Outputs: 1 Output Output voltage: 12V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: 0 C Output voltage: 12 V Maximum Input Voltage: 26 V Output current: 1 A The product's 13.6 V is 5.1 V. Load regulation is 120 mV. Input bias current of 10 mA This product has a 15 mA of 7 mA, making it ideal for low-power applications. The 0.5 V at 1 A 0.11 V at 100 mA. The maximum 0.8 V at 1 A 0.15 V at 100 mA is 360 mV. This product's 120 mV is 0.01 %/V.

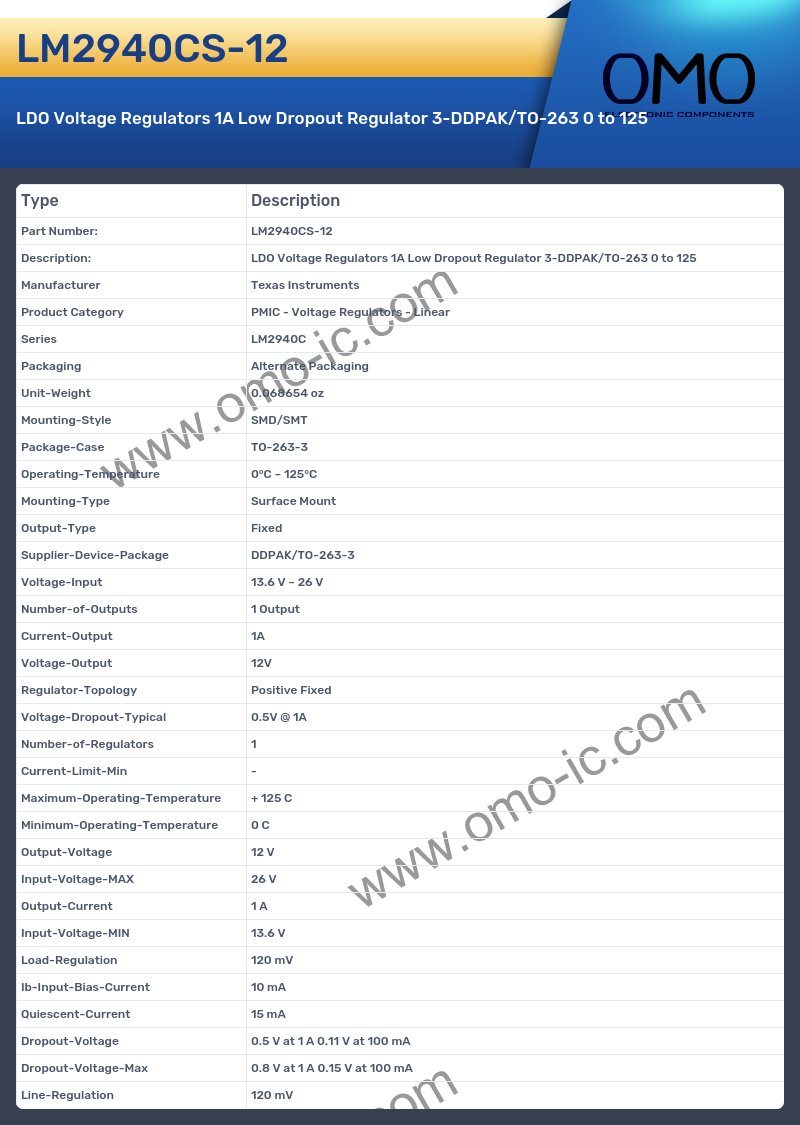

LM2940CS-12 Image

LM2940CS-12 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LM2940C
• Packaging Alternate Packaging
• Unit-Weight 0.068654 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3
• Operating-Temperature 0°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package DDPAK/TO-263-3
• Voltage-Input 13.6 V ~ 26 V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 12V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.5V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 12 V
• Input-Voltage-MAX 26 V
• Output-Current 1 A
• Input-Voltage-MIN 13.6 V
• Load-Regulation 120 mV
• Ib-Input-Bias-Current 10 mA
• Quiescent-Current 15 mA
• Dropout-Voltage 0.5 V at 1 A 0.11 V at 100 mA
• Dropout-Voltage-Max 0.8 V at 1 A 0.15 V at 100 mA
• Line-Regulation 120 mV
