LM2937ES-12 Overview

Product belongs to the LM2937 series. This product is categorized as Low Dropout Regulator Type: Positive Voltage Tube is the packaging method for this product Weight of 0.068654 oz SMD/SMT Mounting-Style TO-263-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: DDPAK/TO-263-3 Up to 26V voltage input Number-of-Outputs: 1 Output Output voltage: 12V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 12 V Maximum Input Voltage: 26 V Output current: 0.5 A Load regulation is 12 mV. The voltage regulation accuracy of this product is +/- 5 %. Input bias current of 2 mA This product has a 10 mA of 7 mA, making it ideal for low-power applications. The 0.11 V at 50 mA 0.5 V at 500 mA. The maximum 0.25 V at 50 mA 1 V at 500 mA is 360 mV. This product's 36 mV is 0.01 %/V.

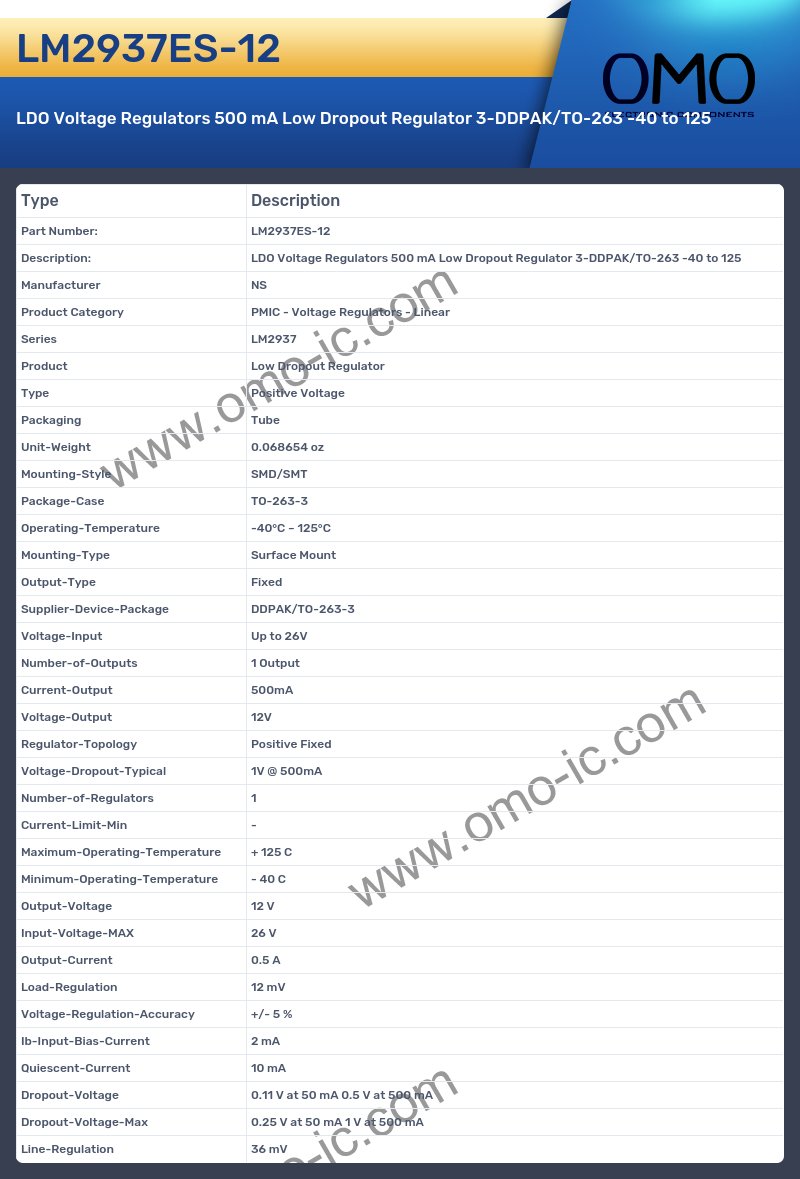

LM2937ES-12 Image

LM2937ES-12 Specifications

• Manufacturer NS
• Product Category PMIC - Voltage Regulators - Linear
• Series LM2937
• Product Low Dropout Regulator
• Type Positive Voltage
• Packaging Tube
• Unit-Weight 0.068654 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package DDPAK/TO-263-3
• Voltage-Input Up to 26V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 12V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 12 V
• Input-Voltage-MAX 26 V
• Output-Current 0.5 A
• Load-Regulation 12 mV
• Voltage-Regulation-Accuracy +/- 5 %
• Ib-Input-Bias-Current 2 mA
• Quiescent-Current 10 mA
• Dropout-Voltage 0.11 V at 50 mA 0.5 V at 500 mA
• Dropout-Voltage-Max 0.25 V at 50 mA 1 V at 500 mA
• Line-Regulation 36 mV
