LM2936MM-3.3

LM2936MM-3.3 Overview

Product belongs to the LM2936 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000649 oz SMD/SMT Mounting-Style VSSOP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-VSSOP 5.5 V ~ 40 V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Maximum Input Voltage: 40 V Output current: 0.05 A The product's 4 V is 5.1 V. Load regulation is 30 mV. The voltage regulation accuracy of this product is +/- 2 %. Input bias current of 15 uA This product has a 20 uA of 7 mA, making it ideal for low-power applications. The 0.05 V at 100 uA 0.2 V at 50 mA. The maximum 0.1 V at 100 uA 0.4 V at 50 mA is 360 mV. This product's 30 mV is 0.01 %/V.

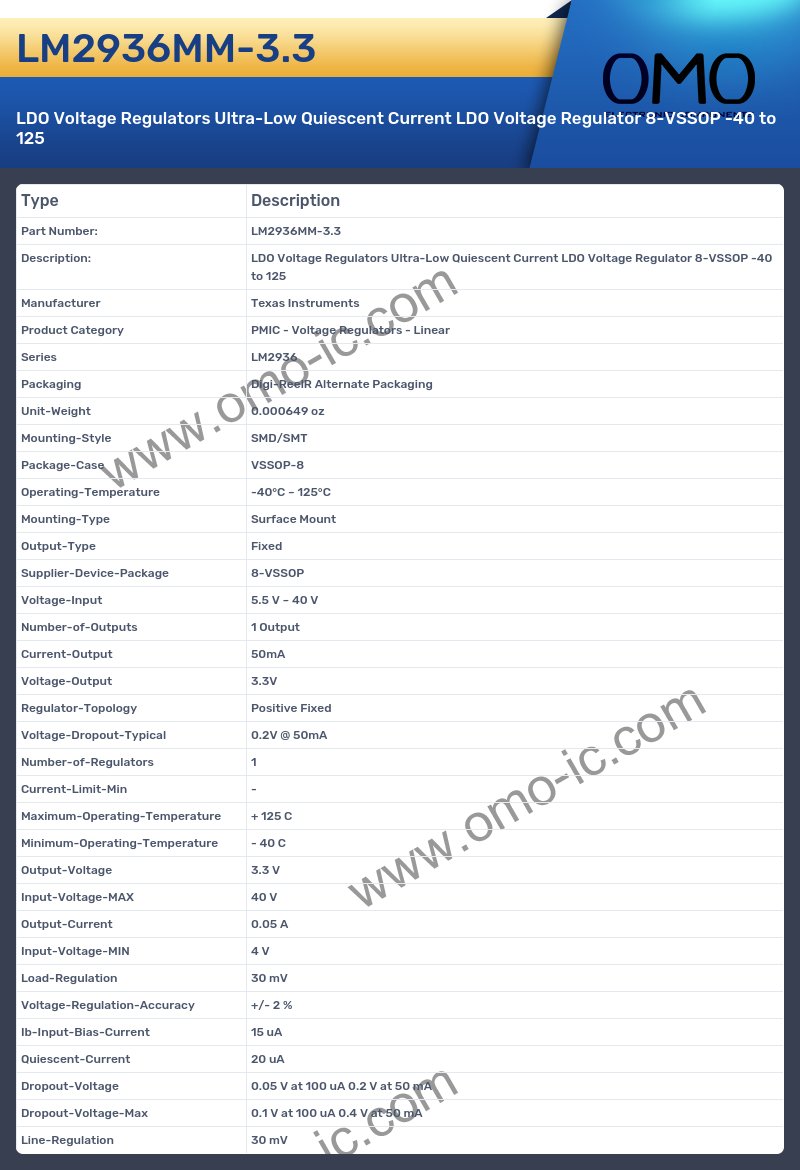

LM2936MM-3.3 Image

LM2936MM-3.3 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LM2936
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000649 oz
• Mounting-Style SMD/SMT
• Package-Case VSSOP-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-VSSOP
• Voltage-Input 5.5 V ~ 40 V
• Number-of-Outputs 1 Output
• Current-Output 50mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.2V @ 50mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 40 V
• Output-Current 0.05 A
• Input-Voltage-MIN 4 V
• Load-Regulation 30 mV
• Voltage-Regulation-Accuracy +/- 2 %
• Ib-Input-Bias-Current 15 uA
• Quiescent-Current 20 uA
• Dropout-Voltage 0.05 V at 100 uA 0.2 V at 50 mA
• Dropout-Voltage-Max 0.1 V at 100 uA 0.4 V at 50 mA
• Line-Regulation 30 mV
