LM2854EVAL

LM2854EVAL Overview

Product belongs to the SIMPLE SWITCHERR series. This product is categorized as Evaluation Boards Type: Voltage Regulators - Switching Regulators The DC/DC, Step Down is the Main-Purpose. 2.95 V ~ 5.5 V voltage input This product features 'Frequency-Switching' at 500kHz for optimal performance. Output voltage: 1.2V Buck regulator topology - Included item: Board. IC package type: LM2854 Board type: Fully Populated. The product has 1, Non-Isolated outputs. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.2 V This product is an 0.5 MHz 16 Pin eTSSOP Buck Regulator. This tool is designed for the LM2854. Our product measures 51 mm x 31 mm x 1.6 mm in dimensions for compact and convenient use. Input Voltage Range: 2.95 V to 5.5 V Output current: 4 A

LM2854EVAL Image

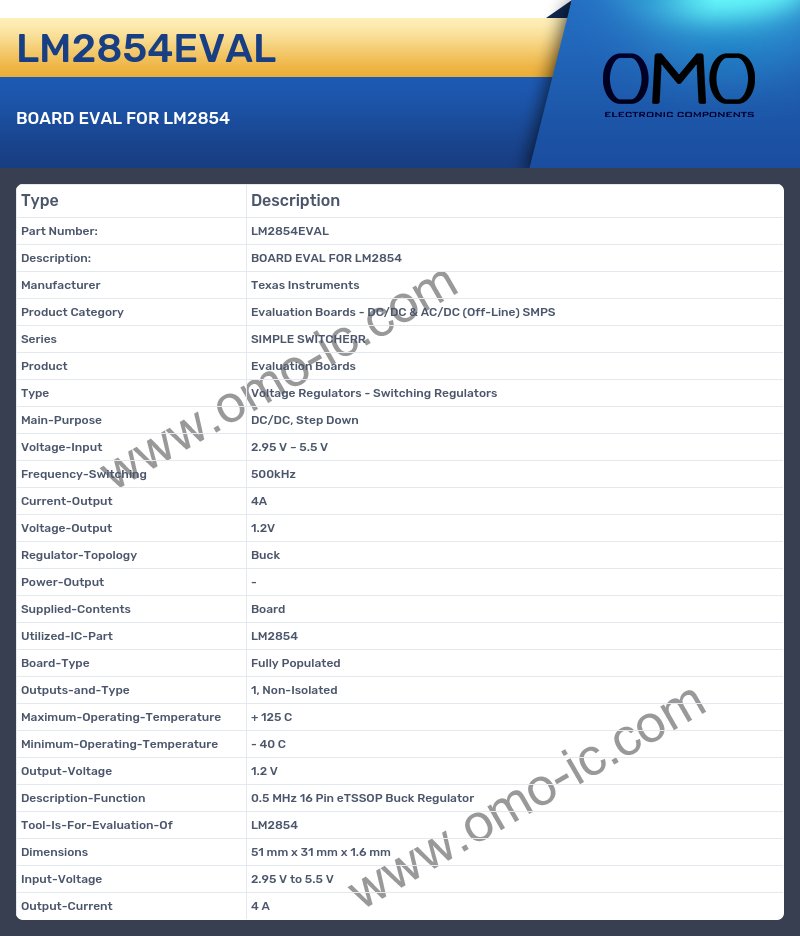

LM2854EVAL Specifications

• Manufacturer Texas Instruments
• Product Category Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
• Series SIMPLE SWITCHERR
• Product Evaluation Boards
• Type Voltage Regulators - Switching Regulators
• Main-Purpose DC/DC, Step Down
• Voltage-Input 2.95 V ~ 5.5 V
• Frequency-Switching 500kHz
• Current-Output 4A
• Voltage-Output 1.2V
• Regulator-Topology Buck
• Power-Output -
• Supplied-Contents Board
• Utilized-IC-Part LM2854
• Board-Type Fully Populated
• Outputs-and-Type 1, Non-Isolated
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V
• Description-Function 0.5 MHz 16 Pin eTSSOP Buck Regulator
• Tool-Is-For-Evaluation-Of LM2854
• Dimensions 51 mm x 31 mm x 1.6 mm
• Input-Voltage 2.95 V to 5.5 V
• Output-Current 4 A
