LM27951SD

LM27951SD Overview

Product belongs to the LM27951 series. Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style The 3 mm is at most 7.6 mm. LLP EP This product's 750kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 14-WSON (4x3) Number-of-Outputs: 4 Current-Output-Channel is 30mA This product has Yes. Topology: Switched Capacitor (Charge Pump) feedback The maximum voltage supply is 5.5V. The minimum 2.8V required for voltage supply. Output voltage: 2.5 V ~ 3.9 V Dimming control is done through PWM communication. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C

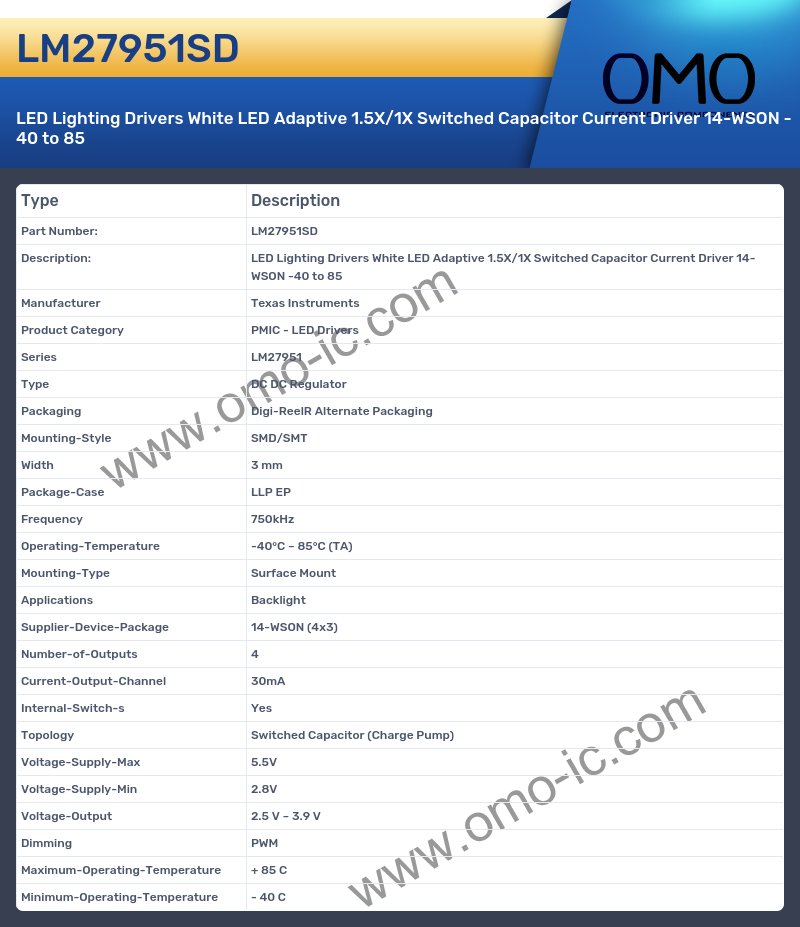

LM27951SD Image

LM27951SD Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series LM27951
• Type DC DC Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Width 3 mm
• Package-Case LLP EP
• Frequency 750kHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 14-WSON (4x3)
• Number-of-Outputs 4
• Current-Output-Channel 30mA
• Internal-Switch-s Yes
• Topology Switched Capacitor (Charge Pump)
• Voltage-Supply-Max 5.5V
• Voltage-Supply-Min 2.8V
• Voltage-Output 2.5 V ~ 3.9 V
• Dimming PWM
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
