LM2585S-ADJ

LM2585S-ADJ Overview

Product belongs to the SIMPLE SWITCHERR series. Type: Step Up Tube is the packaging method for this product Weight of 0.056128 oz SMD/SMT Mounting-Style TO-263-5 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Up, Step-Up/Step-Down. Supplier device package: DDPAK/TO-263-5 Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback This product features 'Frequency-Switching' at 100kHz for optimal performance. The Positive. Minimum fixed output voltage is 1.23V . The value of No is included as a product attribute. The minimum input voltage is 4V. The 40V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 11.52 V to 12.48 V Maximum Input Voltage: 40 V Output current: 3 A Switching frequency is 85 kHz to 115 kHz The product's 4 V is 5.1 V. Load regulation is 100 mV.

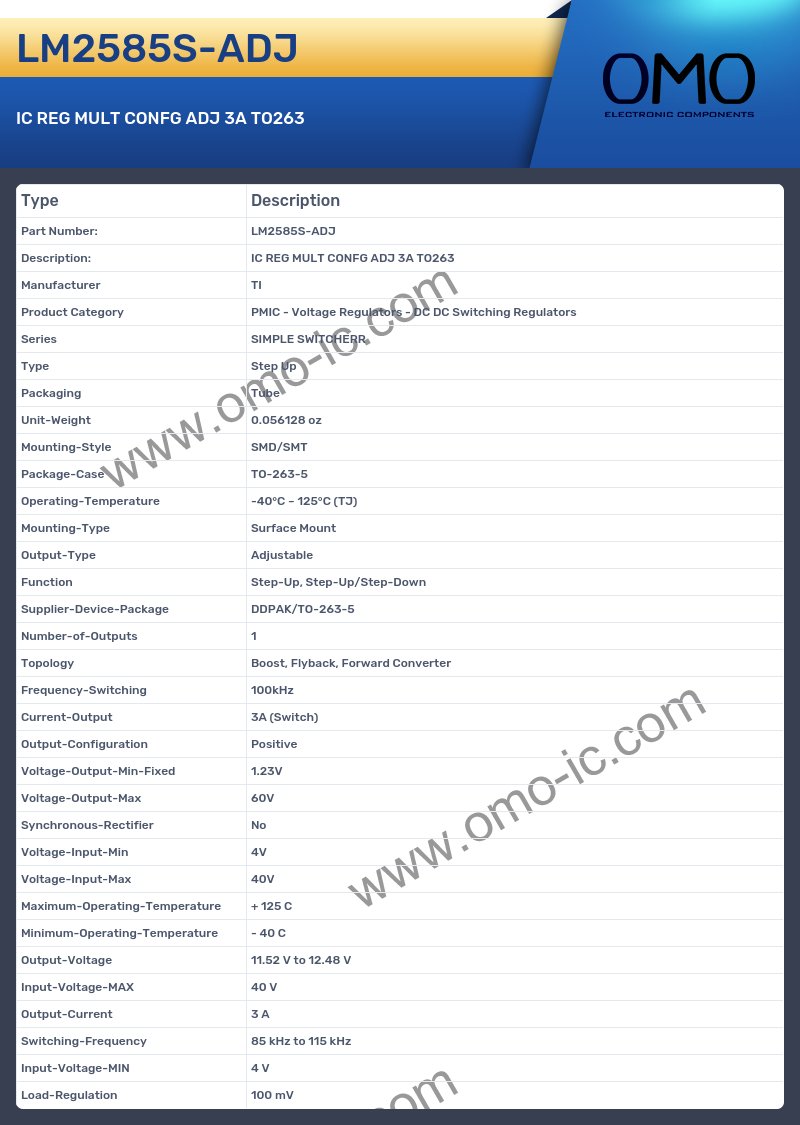

LM2585S-ADJ Image

LM2585S-ADJ Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SIMPLE SWITCHERR
• Type Step Up
• Packaging Tube
• Unit-Weight 0.056128 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-5
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package DDPAK/TO-263-5
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter
• Frequency-Switching 100kHz
• Current-Output 3A (Switch)
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 1.23V
• Voltage-Output-Max 60V
• Synchronous-Rectifier No
• Voltage-Input-Min 4V
• Voltage-Input-Max 40V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 11.52 V to 12.48 V
• Input-Voltage-MAX 40 V
• Output-Current 3 A
• Switching-Frequency 85 kHz to 115 kHz
• Input-Voltage-MIN 4 V
• Load-Regulation 100 mV
