LM211QDRG4

LM211QDRG4 Overview

Product belongs to the LM211 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL Number of channels: 1 Channel Supplier device package: 8-SOIC Voltage supply range: 3.5 V ~ 30 V, ±1.75 V ~ 15 V 1 element 6mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 115 ns response time Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 6 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 3.5 V Differential comparator type Input bias current of 300 nA The 3 mV. The - 14.7 V to 13.8 V. 50 mA

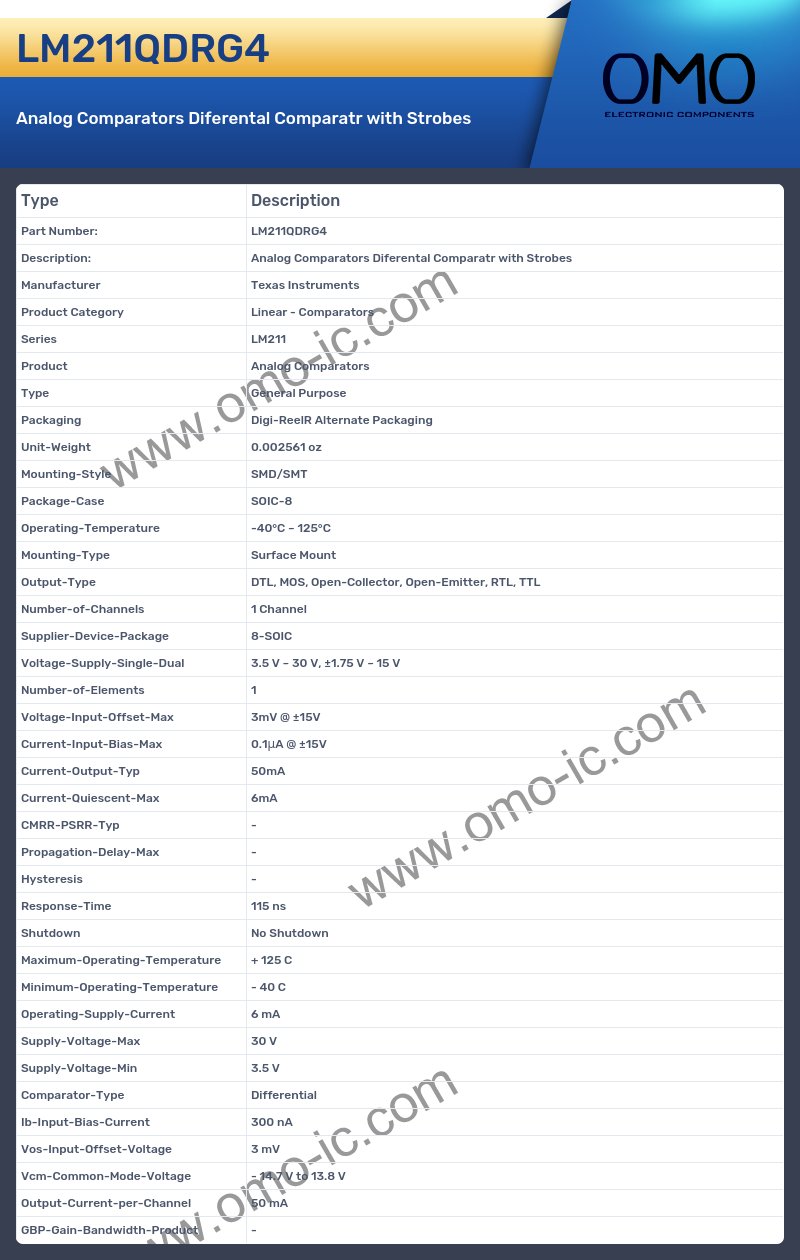

LM211QDRG4 Image

LM211QDRG4 Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LM211
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 3.5 V ~ 30 V, ±1.75 V ~ 15 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 3mV @ ±15V
• Current-Input-Bias-Max 0.1μA @ ±15V
• Current-Output-Typ 50mA
• Current-Quiescent-Max 6mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 115 ns
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 6 mA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 3.5 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 300 nA
• Vos-Input-Offset-Voltage 3 mV
• Vcm-Common-Mode-Voltage - 14.7 V to 13.8 V
• Output-Current-per-Channel 50 mA
• GBP-Gain-Bandwidth-Product -
