LM158J

LM158J Overview

Product belongs to the LM158-N series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Through Hole Mounting-Style Number of channels: 2 Channel Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 500 uA is 92 nA. Maximum supply voltage of 32 V Minimum supply voltage is 3 V CDIP-8 Input bias current of 150 nA The 2 mV. 40 mA The CMRR-Common-Mode-Rejection-Ratio is 70 dB. Minimum dual supply voltage of +/- 1.5 V

LM158J Image

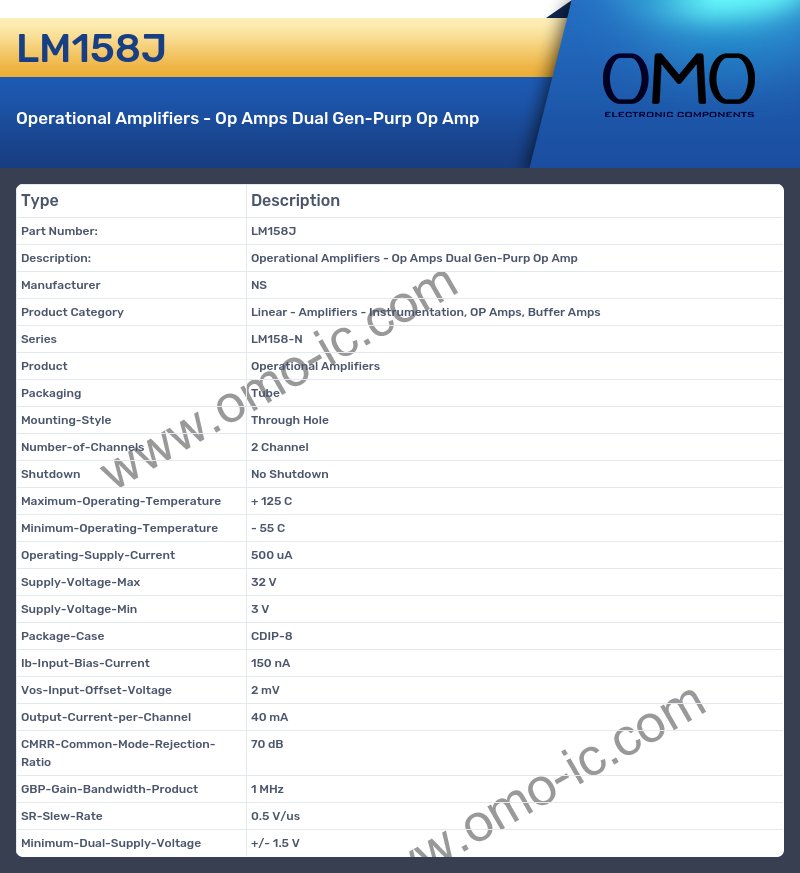

LM158J Specifications

• Manufacturer NS
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series LM158-N
• Product Operational Amplifiers
• Packaging Tube
• Mounting-Style Through Hole
• Number-of-Channels 2 Channel
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 500 uA
• Supply-Voltage-Max 32 V
• Supply-Voltage-Min 3 V
• Package-Case CDIP-8
• Ib-Input-Bias-Current 150 nA
• Vos-Input-Offset-Voltage 2 mV
• Output-Current-per-Channel 40 mA
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product 1 MHz
• SR-Slew-Rate 0.5 V/us
• Minimum-Dual-Supply-Voltage +/- 1.5 V
