LDF33PT-TR

LDF33PT-TR Overview

Product belongs to the LDF series. This product is categorized as LDO Linear Regulators Type: LDO Linear Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style DPAK-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: PPAK Up to 16V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V 200 uA is 92 nA. Maximum Input Voltage: 16 V Output current: 1 A The product's 2.6 V is 5.1 V. Load regulation is 0.2 %/A. The maximum 500 mV is 360 mV. This product's 0.01 %/V is 0.01 %/V. The product's 60 dB is -20 dB.

LDF33PT-TR Image

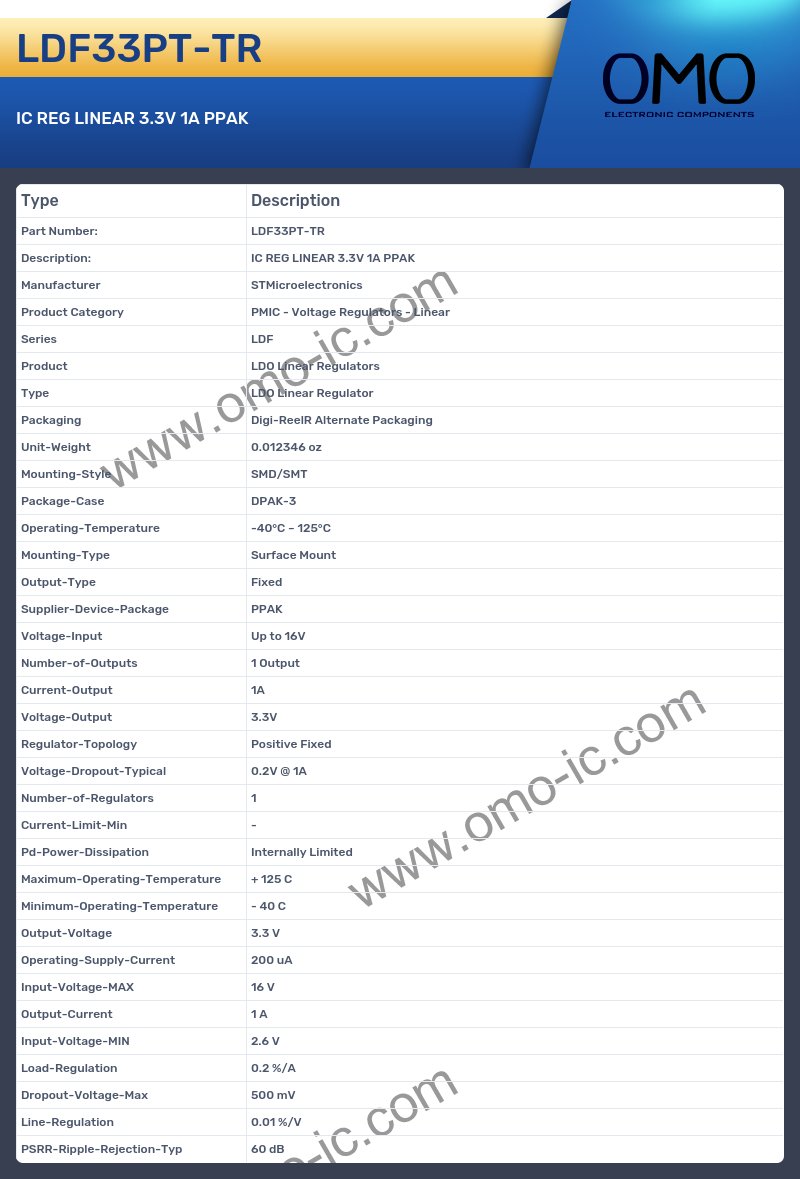

LDF33PT-TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LDF
• Product LDO Linear Regulators
• Type LDO Linear Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.012346 oz
• Mounting-Style SMD/SMT
• Package-Case DPAK-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package PPAK
• Voltage-Input Up to 16V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.2V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Operating-Supply-Current 200 uA
• Input-Voltage-MAX 16 V
• Output-Current 1 A
• Input-Voltage-MIN 2.6 V
• Load-Regulation 0.2 %/A
• Dropout-Voltage-Max 500 mV
• Line-Regulation 0.01 %/V
• PSRR-Ripple-Rejection-Typ 60 dB
