LD39050PUR

LD39050PUR Overview

Product belongs to the LD39050 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DFN-EP-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 6-DFN (3x3) Tolerance of 2 % 1.5 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: Adj to 0.8V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 800 mV Maximum Input Voltage: 5.5 V Output current: 500 mA The product's + 1.5 V is 5.1 V. Load regulation is 0.002 % / mA. The voltage regulation accuracy of this product is 2 %. Input bias current of 20 uA This product has a 50 uA of 7 mA, making it ideal for low-power applications. The 0.2 V at 500 mA. The maximum 400 mV is 360 mV. This product's 0.01 % / V is 0.01 %/V.

LD39050PUR Image

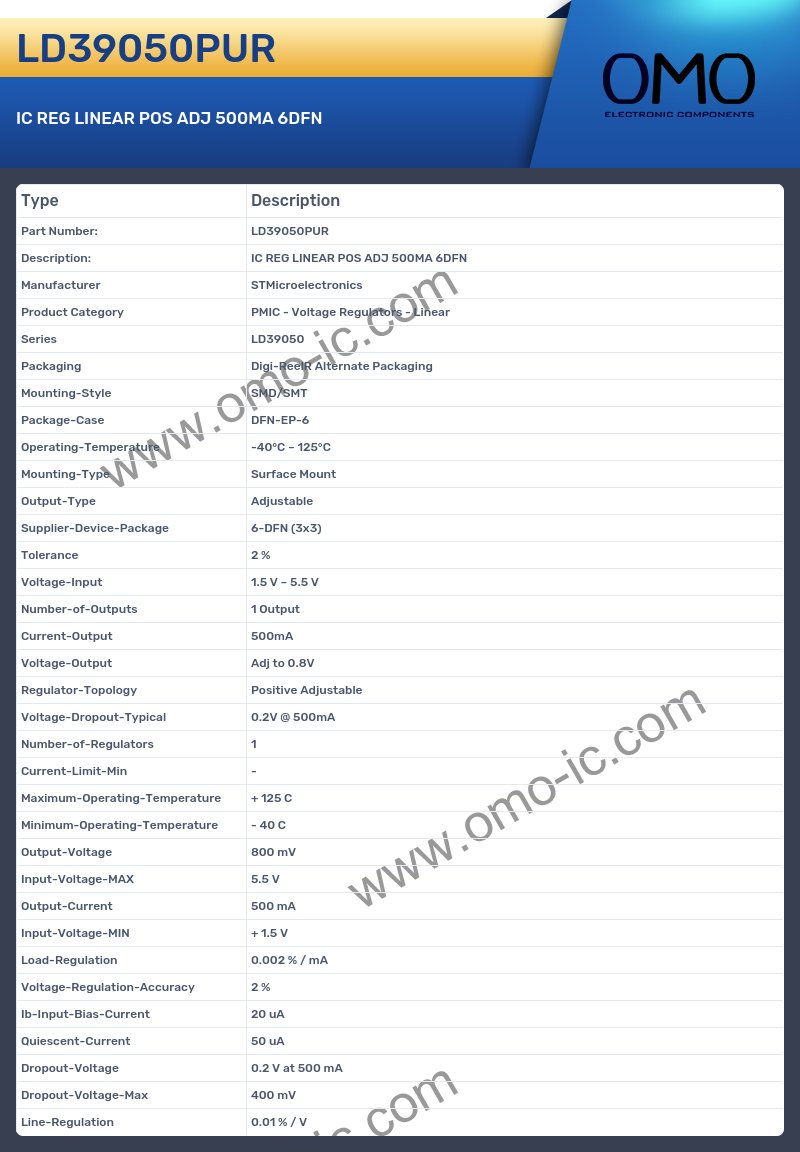

LD39050PUR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD39050
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DFN-EP-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 6-DFN (3x3)
• Tolerance 2 %
• Voltage-Input 1.5 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output Adj to 0.8V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.2V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 800 mV
• Input-Voltage-MAX 5.5 V
• Output-Current 500 mA
• Input-Voltage-MIN + 1.5 V
• Load-Regulation 0.002 % / mA
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 20 uA
• Quiescent-Current 50 uA
• Dropout-Voltage 0.2 V at 500 mA
• Dropout-Voltage-Max 400 mV
• Line-Regulation 0.01 % / V
