LD29300P2MTR

LD29300P2MTR Overview

Product belongs to the LD29300P2M series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.079014 oz SMD/SMT Mounting-Style D2PAK-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: P2PAK-4 2.5 V ~ 14 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.5 V ~ 9 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: Adj Maximum Input Voltage: 30 V Output current: 3 A The product's + 2.5 V is 5.1 V. Load regulation is 1 %. The voltage regulation accuracy of this product is 1 %. Input bias current of 20 mA This product has a 50 mA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.23 V . The 0.1 V at 500 mA. The maximum 700 mV at 3 A is 360 mV. This product's 0.5 % is 0.01 %/V.

LD29300P2MTR Image

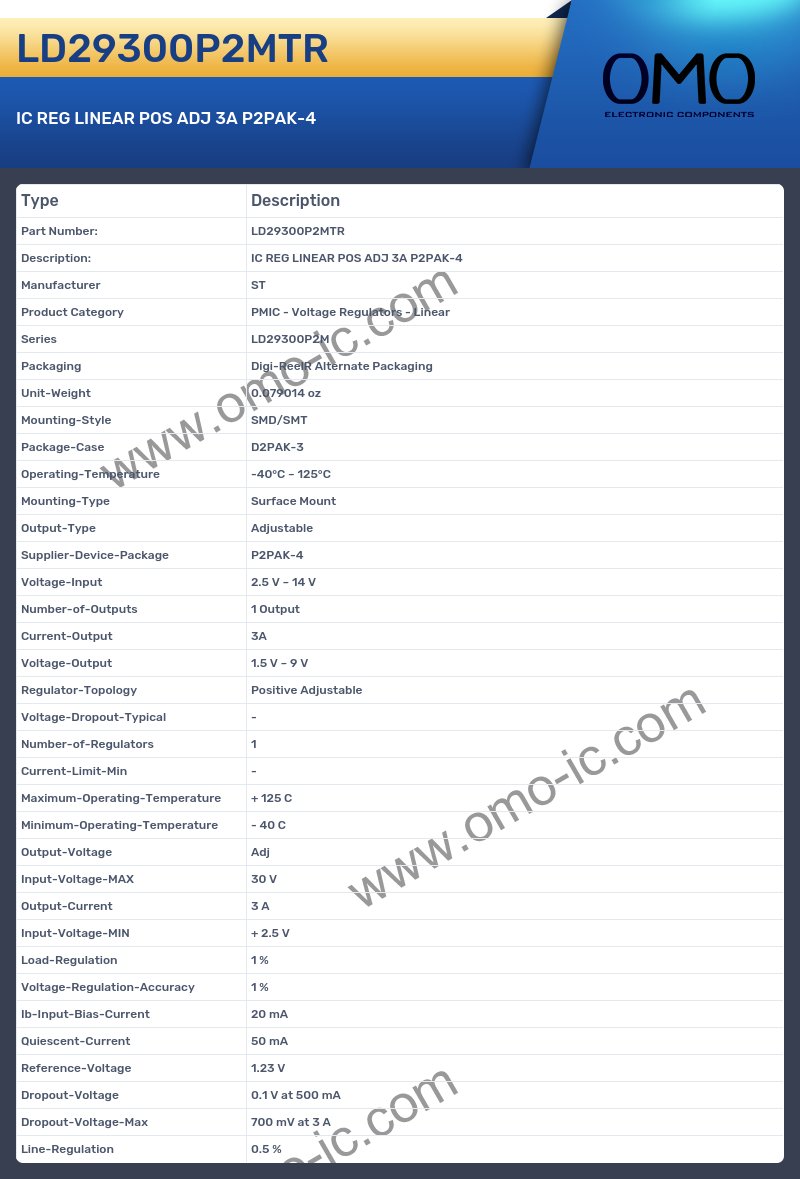

LD29300P2MTR Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Regulators - Linear
• Series LD29300P2M
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.079014 oz
• Mounting-Style SMD/SMT
• Package-Case D2PAK-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package P2PAK-4
• Voltage-Input 2.5 V ~ 14 V
• Number-of-Outputs 1 Output
• Current-Output 3A
• Voltage-Output 1.5 V ~ 9 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adj
• Input-Voltage-MAX 30 V
• Output-Current 3 A
• Input-Voltage-MIN + 2.5 V
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 20 mA
• Quiescent-Current 50 mA
• Reference-Voltage 1.23 V
• Dropout-Voltage 0.1 V at 500 mA
• Dropout-Voltage-Max 700 mV at 3 A
• Line-Regulation 0.5 %
