LCP1521S

LCP1521S Overview

Product belongs to the LCP series. Type: Programmable Transient Voltage Suppressor for SLIC Protection Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Wide - 40 C to + 150 C operating temperature range for diverse applications The Height of the product is 1.25 mm. 4.9 mm length of the product The 3.9 mm is at most 7.6 mm. 8-SOIC (0.154", 3.90mm Width) The capacitance of this product is 35pF. 1 element The Voltage-Breakover of the product is -. The Voltage-Off-State is -. 100A of Current-Peak-Pulse-8-20μs; 150mA Current Holding-Ih; Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 18 A Peak Surge Current Polarity: Bidirectional

LCP1521S Image

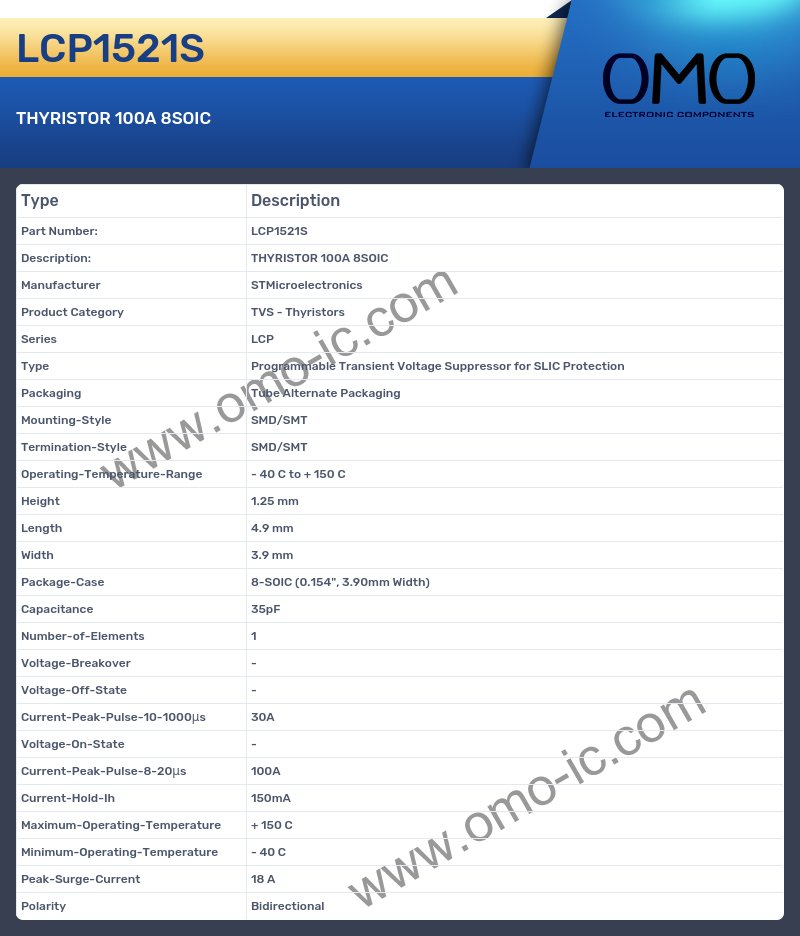

LCP1521S Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Thyristors
• Series LCP
• Type Programmable Transient Voltage Suppressor for SLIC Protection
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Height 1.25 mm
• Length 4.9 mm
• Width 3.9 mm
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Capacitance 35pF
• Number-of-Elements 1
• Voltage-Breakover -
• Voltage-Off-State -
• Current-Peak-Pulse-10-1000μs 30A
• Voltage-On-State -
• Current-Peak-Pulse-8-20μs 100A
• Current-Hold-Ih 150mA
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Peak-Surge-Current 18 A
• Polarity Bidirectional
