L9347LF

L9347LF Overview

Product belongs to the L9347 series. Tray is the packaging method for this product SMD/SMT Mounting-Style 36-BSSOP (0.433", 11.00mm Width) Exposed Pad The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSO-36 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 4 Supply Voltage: Not Required The Low Side. The -. Voltage-Load range is 4.8 V ~ 18 V. Our product delivers a 2.5A, 5A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Max on-resistance of 200 mOhms/350 mOhms

L9347LF Image

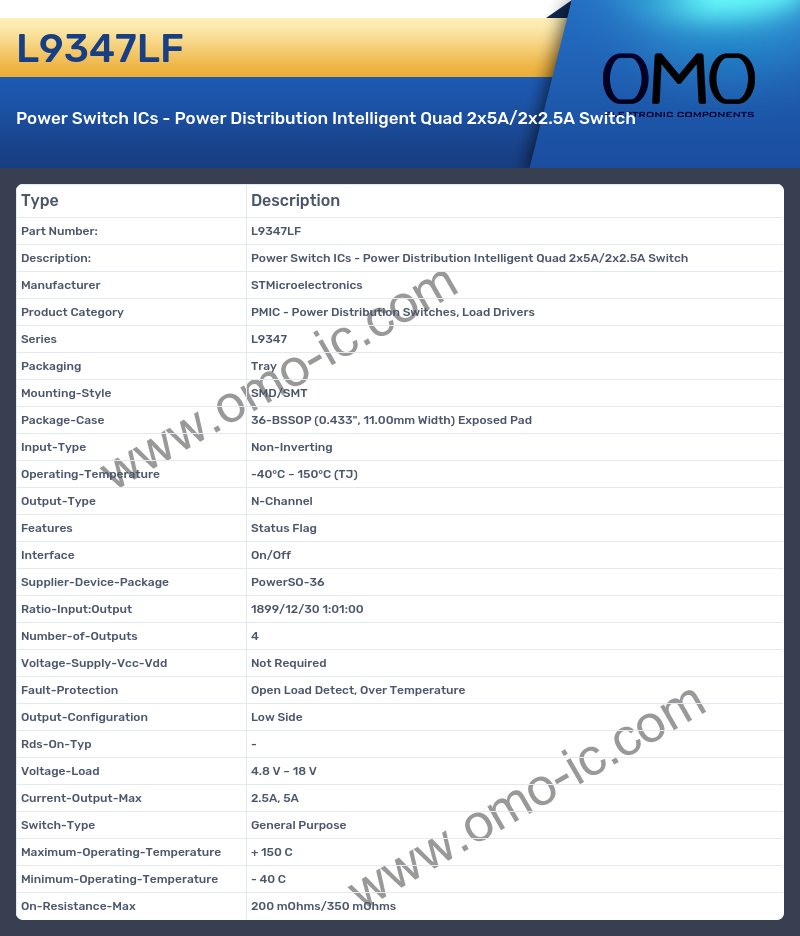

L9347LF Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series L9347
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package PowerSO-36
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Open Load Detect, Over Temperature
• Output-Configuration Low Side
• Rds-On-Typ -
• Voltage-Load 4.8 V ~ 18 V
• Current-Output-Max 2.5A, 5A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• On-Resistance-Max 200 mOhms/350 mOhms
