L6910

L6910 Overview

Product belongs to the L6910 series. This product is categorized as Voltage Mode PWM Controllers Tube is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 16-SO Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 5 V ~ 12 V This product features 'Frequency-Switching' at 200kHz for optimal performance. The Control-Features include Current Limit, Frequency Control, Phase Control, Power Good, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 100 % The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Power-off control: No The product's Non-Isolated is non-isolated. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Output voltage: 4 V This product is an Features very fast load transient response. 4 mA to 9 mA is 92 nA. Input Voltage Range: 15 V Output current: 20 mA Switching frequency is 230 kHz

L6910 Image

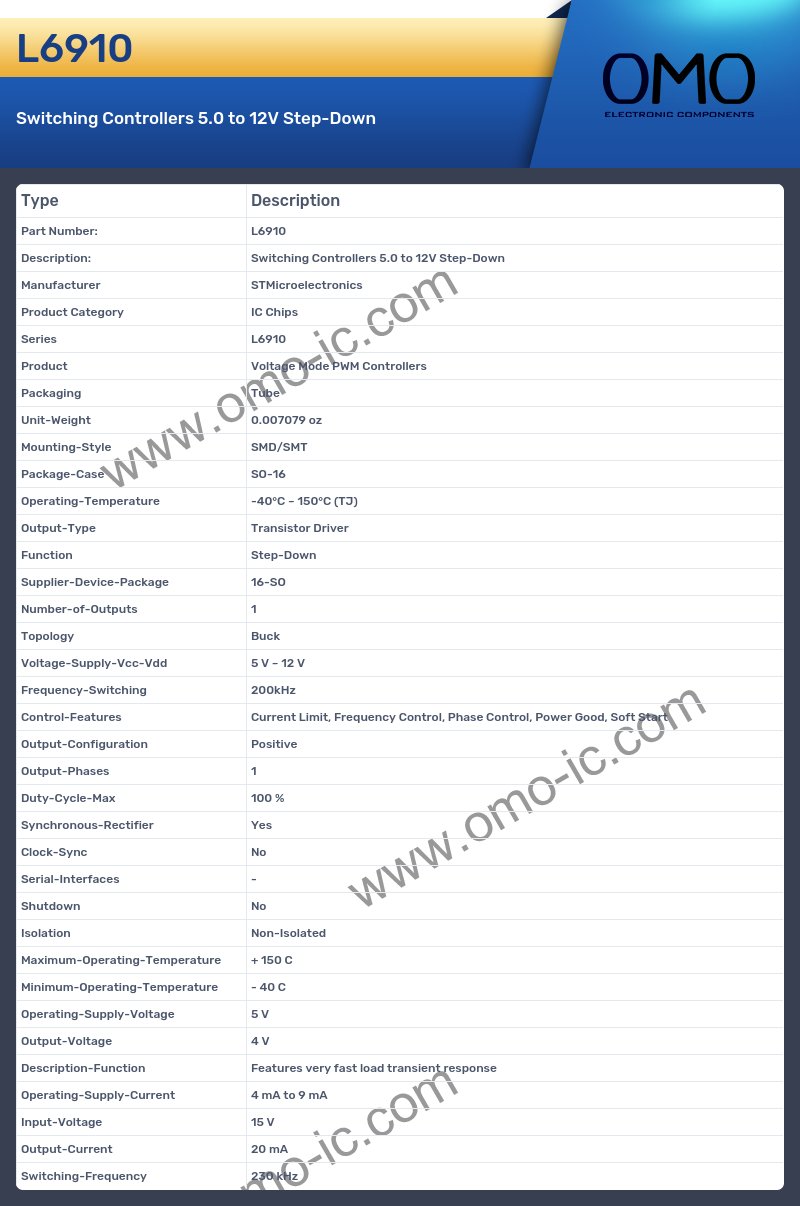

L6910 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L6910
• Product Voltage Mode PWM Controllers
• Packaging Tube
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SO-16
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 16-SO
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 5 V ~ 12 V
• Frequency-Switching 200kHz
• Control-Features Current Limit, Frequency Control, Phase Control, Power Good, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 100 %
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Shutdown No
• Isolation Non-Isolated
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Output-Voltage 4 V
• Description-Function Features very fast load transient response
• Operating-Supply-Current 4 mA to 9 mA
• Input-Voltage 15 V
• Output-Current 20 mA
• Switching-Frequency 230 kHz
