L6591TR Overview

Product belongs to the L6591 series. This product is categorized as Voltage Controllers Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SO-16N Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 16-SO Output-Isolation: Isolated This product has No. Topology: Half-Bridge feedback Supply Voltage: 8.7 V ~ 22 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control, Soft Start function. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum duty cycle of 50 %

L6591TR Image

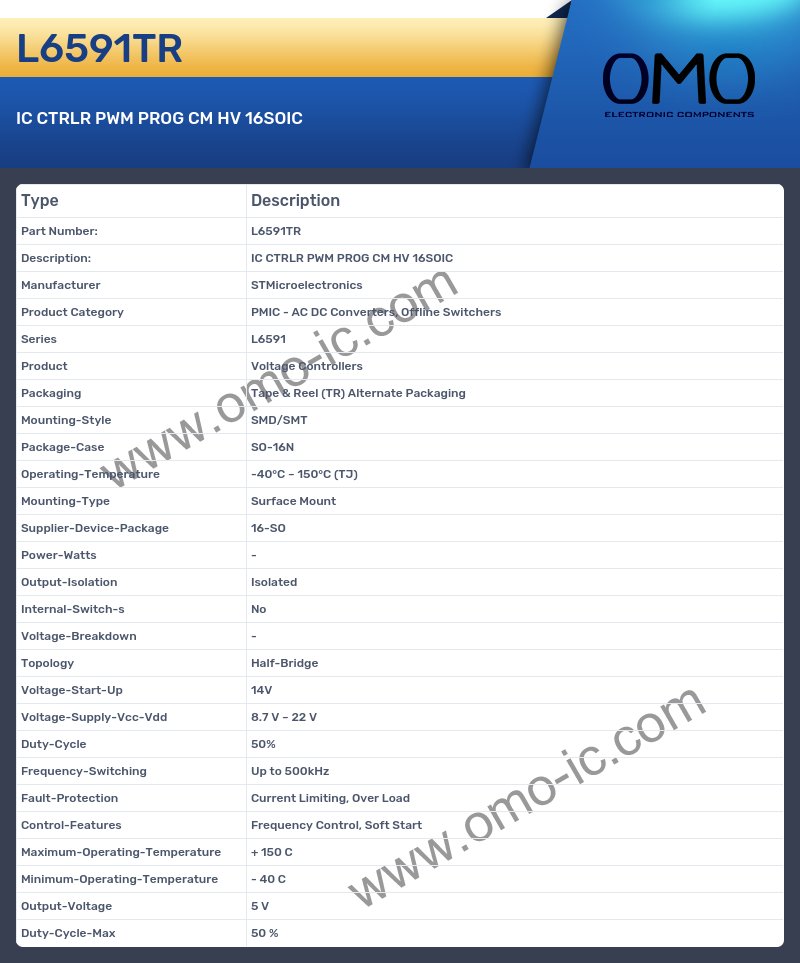

L6591TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series L6591
• Product Voltage Controllers
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SO-16N
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 16-SO
• Power-Watts -
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Half-Bridge
• Voltage-Start-Up 14V
• Voltage-Supply-Vcc-Vdd 8.7 V ~ 22 V
• Duty-Cycle 50%
• Frequency-Switching Up to 500kHz
• Fault-Protection Current Limiting, Over Load
• Control-Features Frequency Control, Soft Start
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Duty-Cycle-Max 50 %
