L6566BTR

L6566BTR Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 16-SO Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 8 V ~ 23 V This product features 'Frequency-Switching' at 10kHz ~ 300kHz for optimal performance. The Control-Features include Soft Start function.

L6566BTR Image

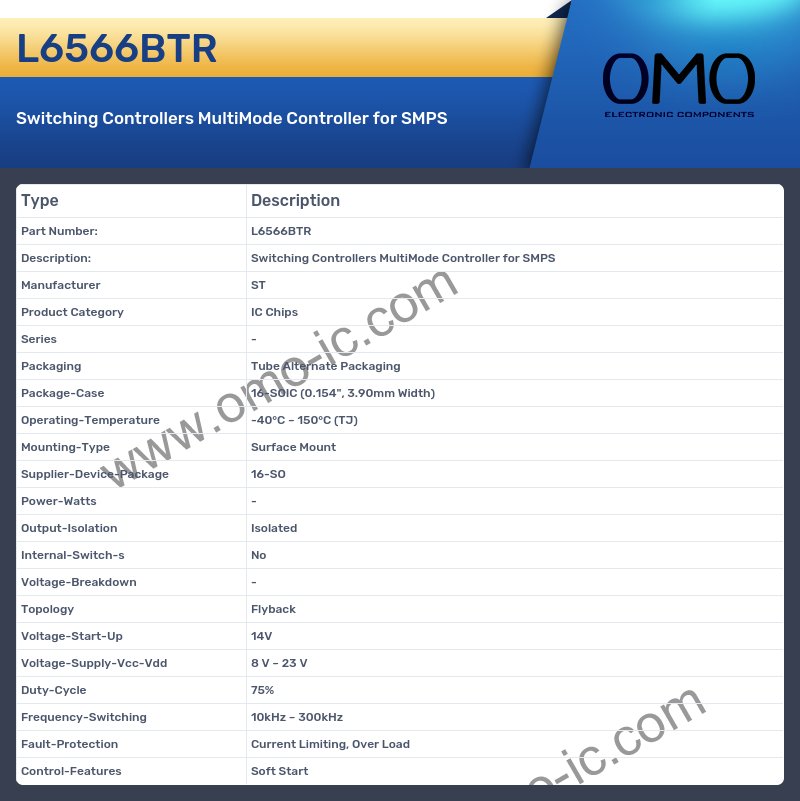

L6566BTR Specifications

• Manufacturer ST
• Product Category IC Chips
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 16-SO
• Power-Watts -
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback
• Voltage-Start-Up 14V
• Voltage-Supply-Vcc-Vdd 8 V ~ 23 V
• Duty-Cycle 75%
• Frequency-Switching 10kHz ~ 300kHz
• Fault-Protection Current Limiting, Over Load
• Control-Features Soft Start
