L6506D

L6506D Overview

Product belongs to the L6506 series. This product is categorized as Stepper Motor Controllers / Drivers Type: Stepper Motor Controller/Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SO-20 - is the technology used. Operational temperature range: 0°C ~ 125°C (TA) Surface Mount mounting type Product function is Controller - Current Management. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 4.5 V ~ 7 V Supplier device package: 20-SO The Pre-Driver - Half Bridge (4). Voltage-Load range is -. - motor type is used for high-performance and efficient operation. This product operates at a 10 V supply voltage for reliable performance. 25 mA is 92 nA.

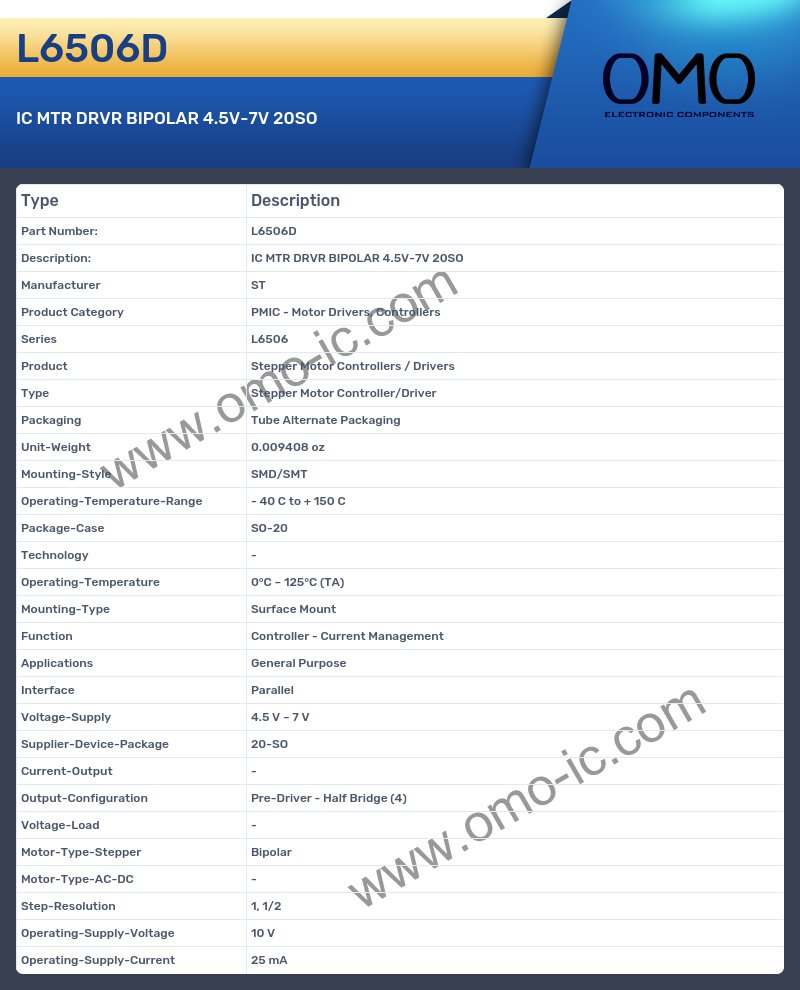

L6506D Image

L6506D Specifications

• Manufacturer ST
• Product Category PMIC - Motor Drivers, Controllers
• Series L6506
• Product Stepper Motor Controllers / Drivers
• Type Stepper Motor Controller/Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case SO-20
• Technology -
• Operating-Temperature 0°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Function Controller - Current Management
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 4.5 V ~ 7 V
• Supplier-Device-Package 20-SO
• Current-Output -
• Output-Configuration Pre-Driver - Half Bridge (4)
• Voltage-Load -
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC -
• Step-Resolution 1, 1/2
• Operating-Supply-Voltage 10 V
• Operating-Supply-Current 25 mA
