L6229N

L6229N Overview

Product belongs to the L6229 series. Type: Driver Tube is the packaging method for this product Weight of 0.131925 oz Through Hole Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications PDIP-24 BiCDMOS is the technology used. Operational temperature range: -25°C ~ 125°C (TJ) Through Hole mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 12 V ~ 52 V Supplier device package: 24-PowerDIP The Half Bridge (3). Voltage-Load range is 12 V ~ 52 V. Brushless DC (BLDC) motor type is used for high-performance and efficient operation. This product operates at a 8 V to 52 V supply voltage for reliable performance. 1.4 A is 92 nA.

L6229N Image

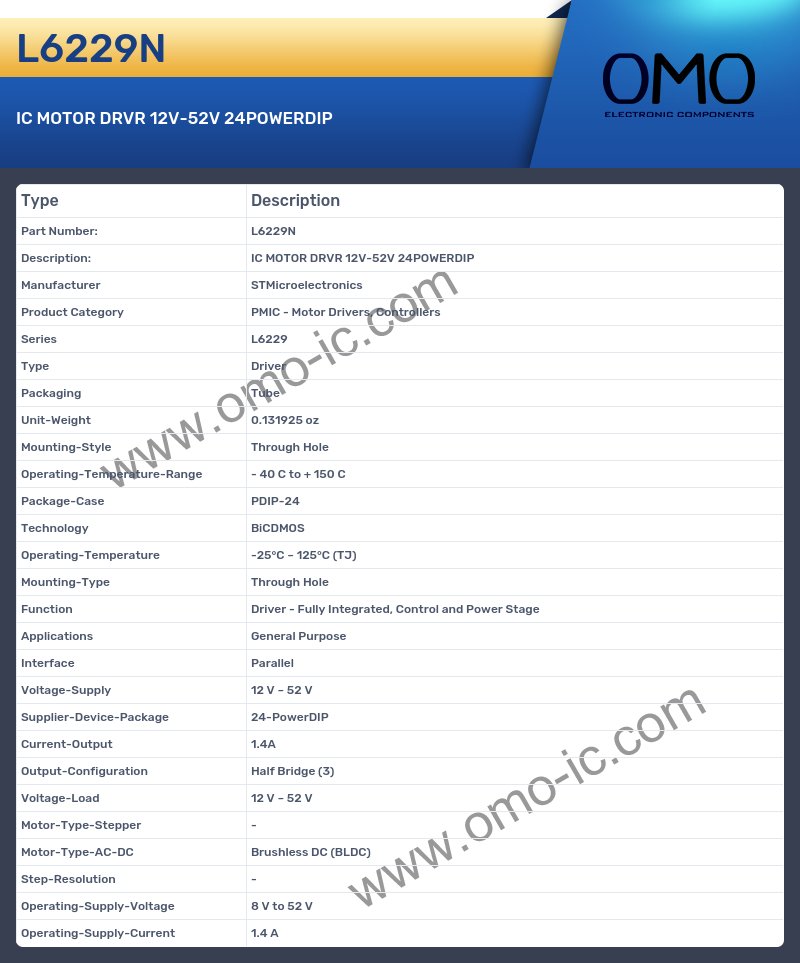

L6229N Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series L6229
• Type Driver
• Packaging Tube
• Unit-Weight 0.131925 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case PDIP-24
• Technology BiCDMOS
• Operating-Temperature -25°C ~ 125°C (TJ)
• Mounting-Type Through Hole
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 12 V ~ 52 V
• Supplier-Device-Package 24-PowerDIP
• Current-Output 1.4A
• Output-Configuration Half Bridge (3)
• Voltage-Load 12 V ~ 52 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushless DC (BLDC)
• Step-Resolution -
• Operating-Supply-Voltage 8 V to 52 V
• Operating-Supply-Current 1.4 A
