L6226PDTR

L6226PDTR Overview

Product belongs to the L6226 series. Type: H-Bridge Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications PowerSO-36 BiCDMOS is the technology used. Operational temperature range: -25°C ~ 125°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 8 V ~ 52 V Supplier device package: PowerSO-36 The Half Bridge (4). Voltage-Load range is 8 V ~ 52 V. Brushed DC motor type is used for high-performance and efficient operation. This product operates at a 8 V to 52 V supply voltage for reliable performance. 10 mA is 92 nA.

L6226PDTR Image

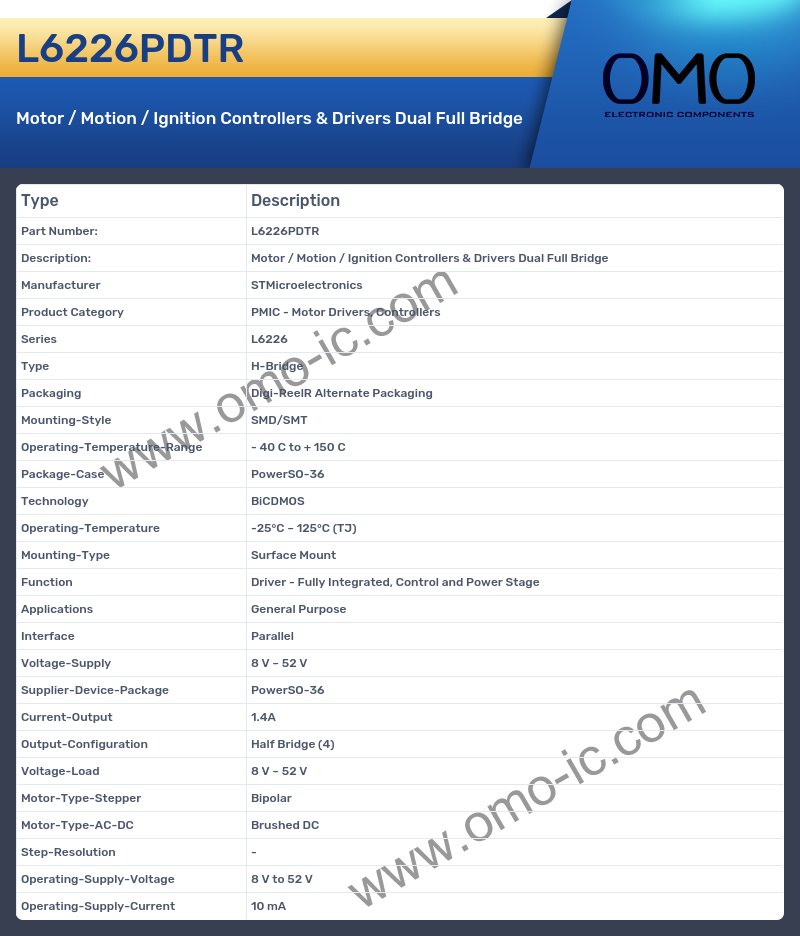

L6226PDTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series L6226
• Type H-Bridge
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case PowerSO-36
• Technology BiCDMOS
• Operating-Temperature -25°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 8 V ~ 52 V
• Supplier-Device-Package PowerSO-36
• Current-Output 1.4A
• Output-Configuration Half Bridge (4)
• Voltage-Load 8 V ~ 52 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
• Operating-Supply-Voltage 8 V to 52 V
• Operating-Supply-Current 10 mA
