J109,126 Overview

Product belongs to the - series. Tape & Box (TB) is the packaging method for this product TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) Through Hole mounting type Supplier device package: TO-92-3 This product uses an N-Channel FET-Type transistor. Voltage Breakdown of V-BRGSS is 25V. 25V 80mA @ 15V Drain Current, Vds, Vgs, and Idss all equal to 0; The Voltage-Cutoff-VGS-off-Id is 2V @ 1μA. This product has an 30pF @ 10V (VGS) value of 300pF @ 25V. Resistance-RDS-On has a value of 12 Ohm.

J109,126 Image

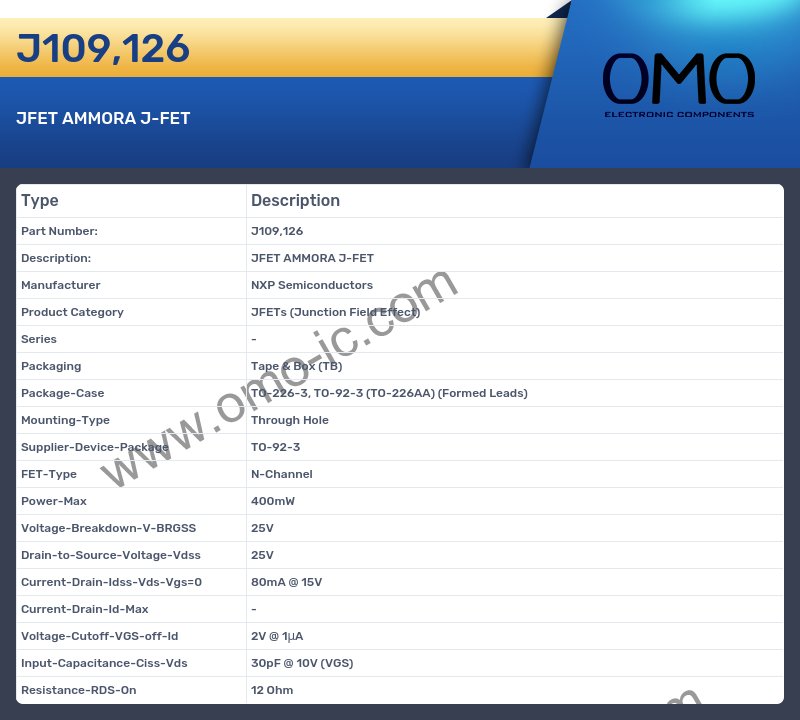

J109,126 Specifications

• Manufacturer NXP Semiconductors
• Product Category JFETs (Junction Field Effect)
• Series -
• Packaging Tape & Box (TB)
• Package-Case TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
• Mounting-Type Through Hole
• Supplier-Device-Package TO-92-3
• FET-Type N-Channel
• Power-Max 400mW
• Voltage-Breakdown-V-BRGSS 25V
• Drain-to-Source-Voltage-Vdss 25V
• Current-Drain-Idss-Vds-Vgs=0 80mA @ 15V
• Current-Drain-Id-Max -
• Voltage-Cutoff-VGS-off-Id 2V @ 1μA
• Input-Capacitance-Ciss-Vds 30pF @ 10V (VGS)
• Resistance-RDS-On 12 Ohm
