ISO7341FCQDWRQ1

ISO7341FCQDWRQ1 Overview

Product belongs to the Automotive, AEC-Q100 series. Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product 16-SOIC (0.295", 7.50mm Width) Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 3000Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/3/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 58ns, 58ns The minimum pulse width distortion is 4ns.

ISO7341FCQDWRQ1 Image

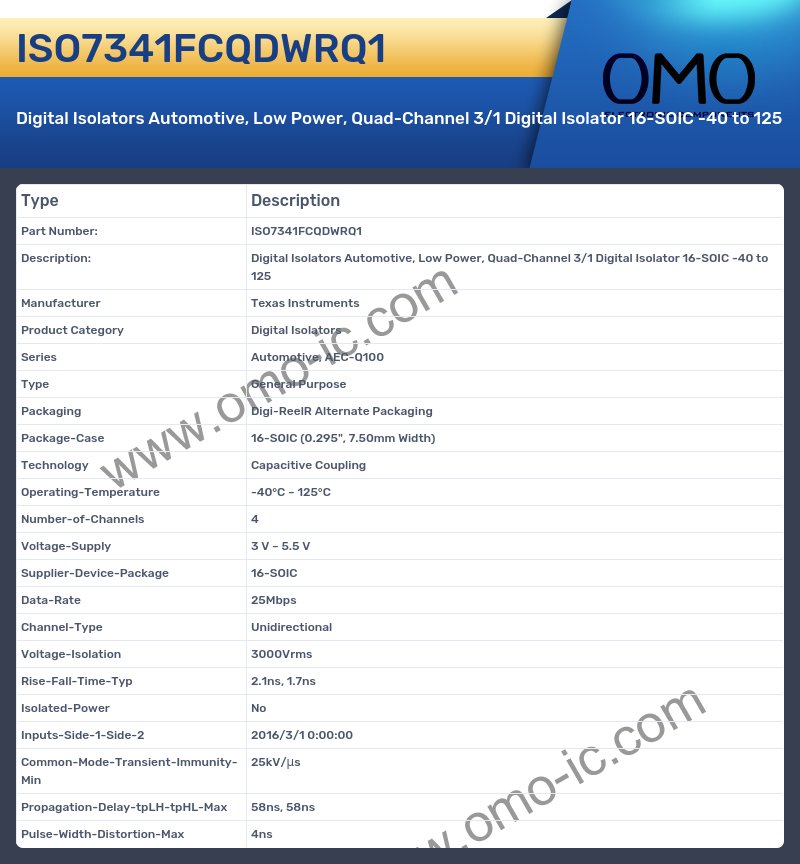

ISO7341FCQDWRQ1 Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series Automotive, AEC-Q100
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 16-SOIC (0.295", 7.50mm Width)
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 4
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 25Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 3000Vrms
• Rise-Fall-Time-Typ 2.1ns, 1.7ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/3/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 58ns, 58ns
• Pulse-Width-Distortion-Max 4ns
