ISO722QDRQ1

ISO722QDRQ1 Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as Digital Isolators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 1 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 8-SOIC This product's Unidirectional This product is designed with 4000Vpk voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2000/1/1 0:00:00 inputs from Side 1 to Side 2. Minimum 15kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 24ns, 24ns The minimum pulse width distortion is -. Power-off control: 159 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Capacitive Coupling is the isolation type specified for this product. 4 mA is 92 nA. Maximum supply voltage of 5 V Minimum supply voltage is 3 V 19 ns is 23 microseconds. This product features 1 Channel Forward-Channels for simple connectivity. The product has 0 Channel for reverse communication.

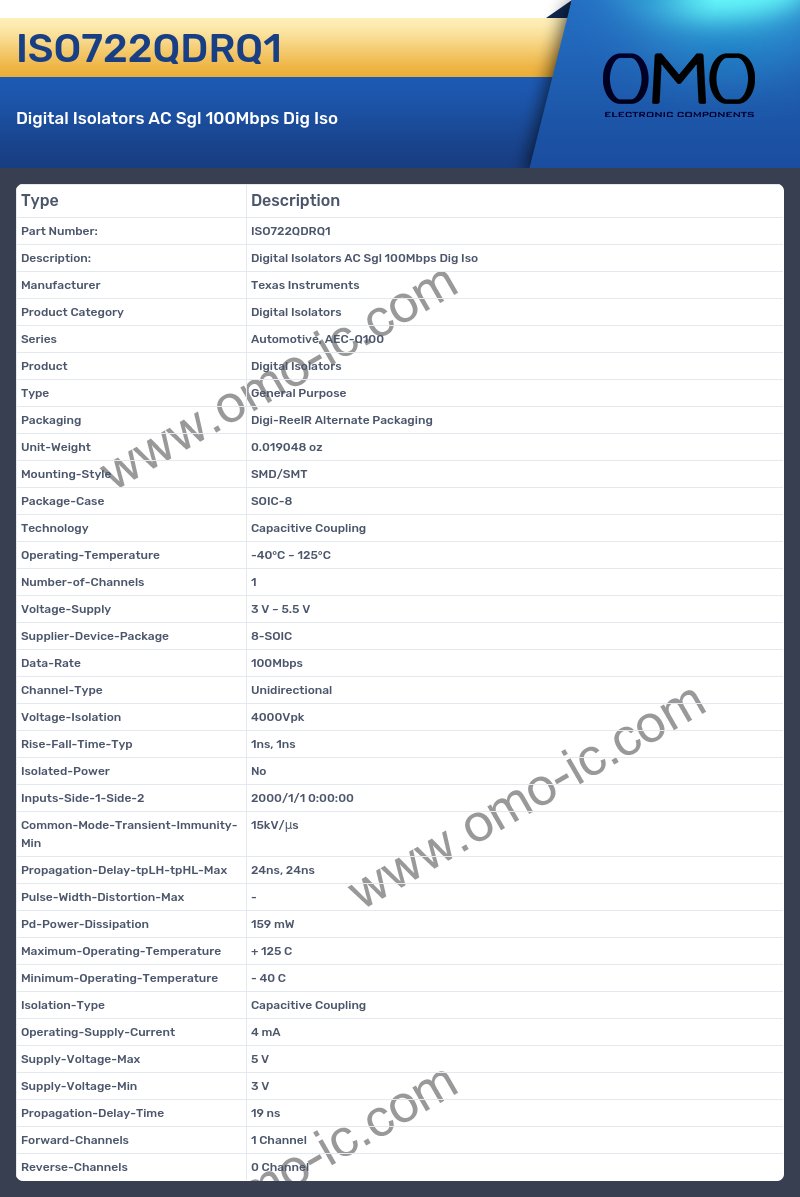

ISO722QDRQ1 Image

ISO722QDRQ1 Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series Automotive, AEC-Q100
• Product Digital Isolators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 1
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Data-Rate 100Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 4000Vpk
• Rise-Fall-Time-Typ 1ns, 1ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/1/1 0:00:00
• Common-Mode-Transient-Immunity-Min 15kV/μs
• Propagation-Delay-tpLH-tpHL-Max 24ns, 24ns
• Pulse-Width-Distortion-Max -
• Pd-Power-Dissipation 159 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 4 mA
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 3 V
• Propagation-Delay-Time 19 ns
• Forward-Channels 1 Channel
• Reverse-Channels 0 Channel
