ISO7221MD

ISO7221MD Overview

Product belongs to the ISO7221M series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 8-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/1/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 16ns, 16ns The minimum pulse width distortion is 1ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. Isolation voltage of 2.5 kVrms Maximum supply voltage of 5 V Minimum supply voltage is 3.3 V 16 ns is 23 microseconds. This product features 1 Channel Forward-Channels for simple connectivity. The product has 1 Channel for reverse communication.

ISO7221MD Image

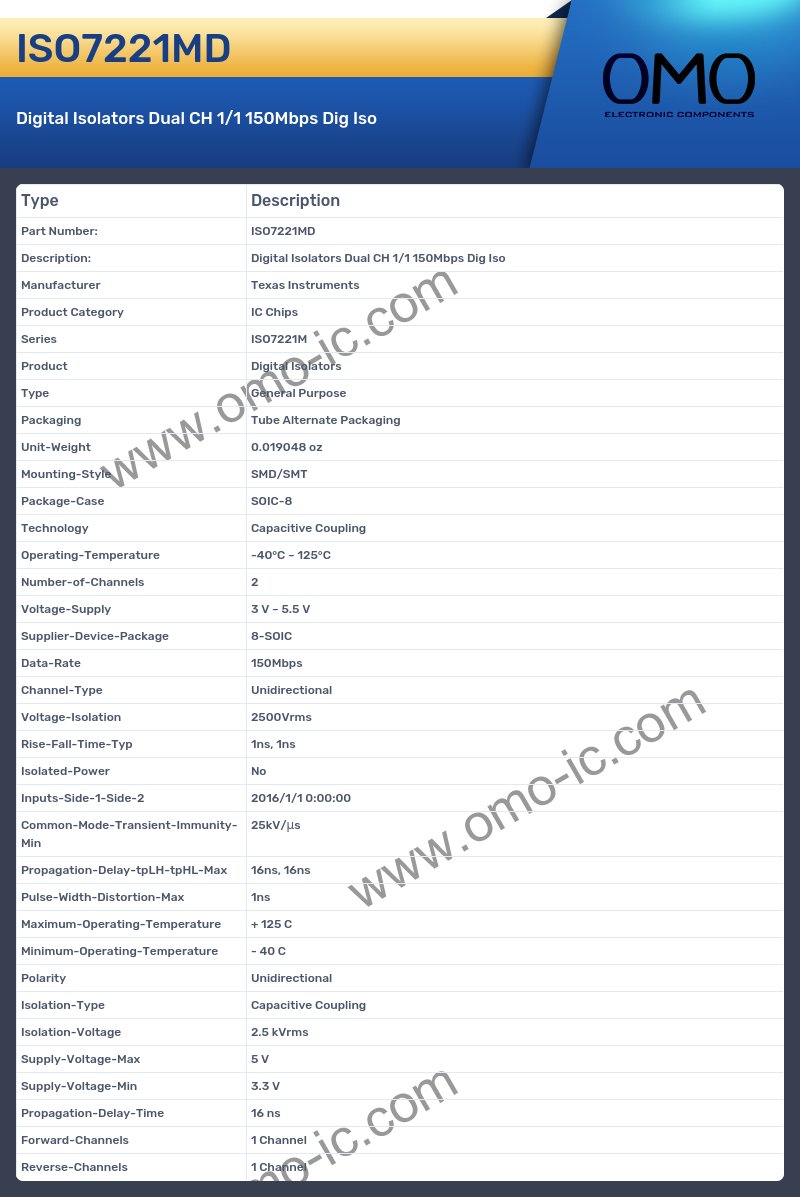

ISO7221MD Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series ISO7221M
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 2
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Data-Rate 150Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ 1ns, 1ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/1/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 16ns, 16ns
• Pulse-Width-Distortion-Max 1ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Unidirectional
• Isolation-Type Capacitive Coupling
• Isolation-Voltage 2.5 kVrms
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 3.3 V
• Propagation-Delay-Time 16 ns
• Forward-Channels 1 Channel
• Reverse-Channels 1 Channel
