INA214AIDCKR

INA214AIDCKR Overview

Product belongs to the INA214 series. This product is categorized as Current Sense Amplifiers Reel is the packaging method for this product Weight of 0.000088 oz SMD/SMT Mounting-Style Number of channels: 1 Channel Topology: Current Shunt Feedback feedback The amplifier is of Current Sense type. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 115 uA is 92 nA. The INA210-214EVM. Maximum supply voltage of 26 V Minimum supply voltage is 2.7 V SC-70-6 Input bias current of 35 uA The 60 uV. The - 0.3 V to + 26 V. The CMRR-Common-Mode-Rejection-Ratio is 105 dB. The 0.02 % of this product is 0.2%. Gain in voltage per voltage: 100 V/V

INA214AIDCKR Image

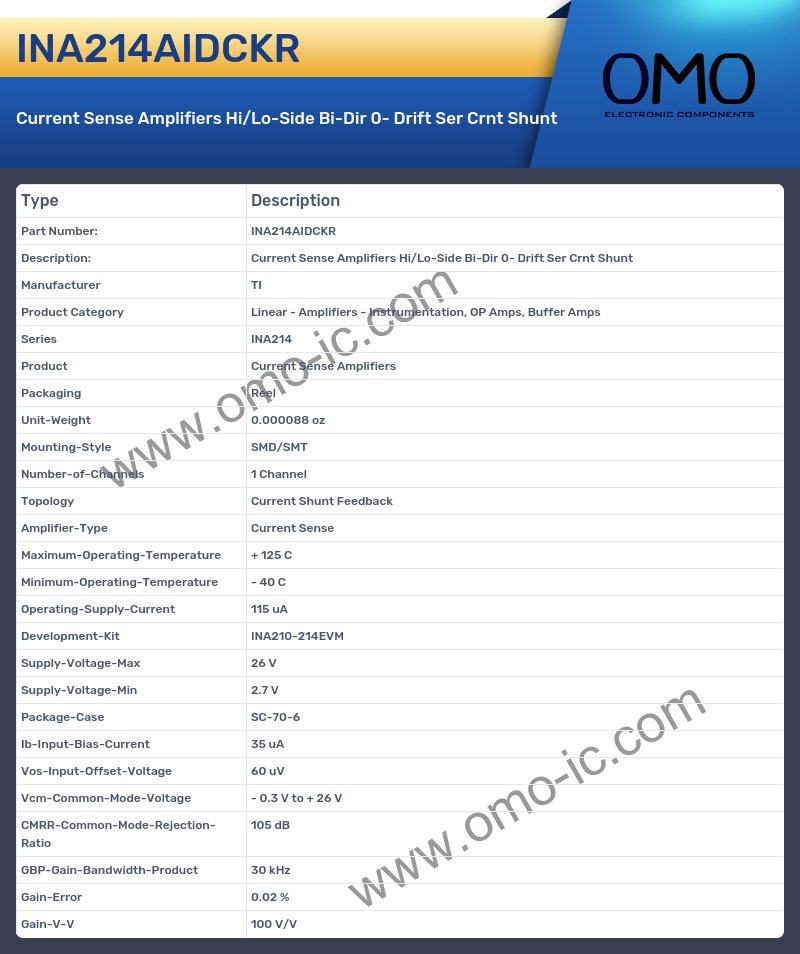

INA214AIDCKR Specifications

• Manufacturer TI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series INA214
• Product Current Sense Amplifiers
• Packaging Reel
• Unit-Weight 0.000088 oz
• Mounting-Style SMD/SMT
• Number-of-Channels 1 Channel
• Topology Current Shunt Feedback
• Amplifier-Type Current Sense
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 115 uA
• Development-Kit INA210-214EVM
• Supply-Voltage-Max 26 V
• Supply-Voltage-Min 2.7 V
• Package-Case SC-70-6
• Ib-Input-Bias-Current 35 uA
• Vos-Input-Offset-Voltage 60 uV
• Vcm-Common-Mode-Voltage - 0.3 V to + 26 V
• CMRR-Common-Mode-Rejection-Ratio 105 dB
• GBP-Gain-Bandwidth-Product 30 kHz
• Gain-Error 0.02 %
• Gain-V-V 100 V/V
