HMCAD1512 Overview

Product belongs to the - series. This product is categorized as Analog to Digital Converters Type: High Speed ADC Tape & Reel (TR) is the packaging method for this product Weight of 0.005309 oz SMD/SMT Mounting-Style QFN-48 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS/RSDS Number of channels: 1 Channel/2 Channel Supplier device package: 48-QFN (7x7) This product's 450M, 900M. Data-Interface: LVDS - Serial 8 bits The Voltage-Supply-Analog is 1.7 V ~ 2 V. The Voltage Supply Digital for this product is 1.7 V ~ 2 V. Configuration MUX-S/H-ADC The architecture of this product is Pipelined . Internal is the reference type. 2 units Power-off control: Shutdown Power-off control: 650 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 4-Wire SPI interface type Signal-to-Noise Ratio of 48.8 dB Number-of-Converters: 2 Converter 450 MS/s Sampling Rate Analog supply voltage: 1.8 V Digital Supply Voltage: 1.8 V Reference voltage is 1 V .

HMCAD1512 Image

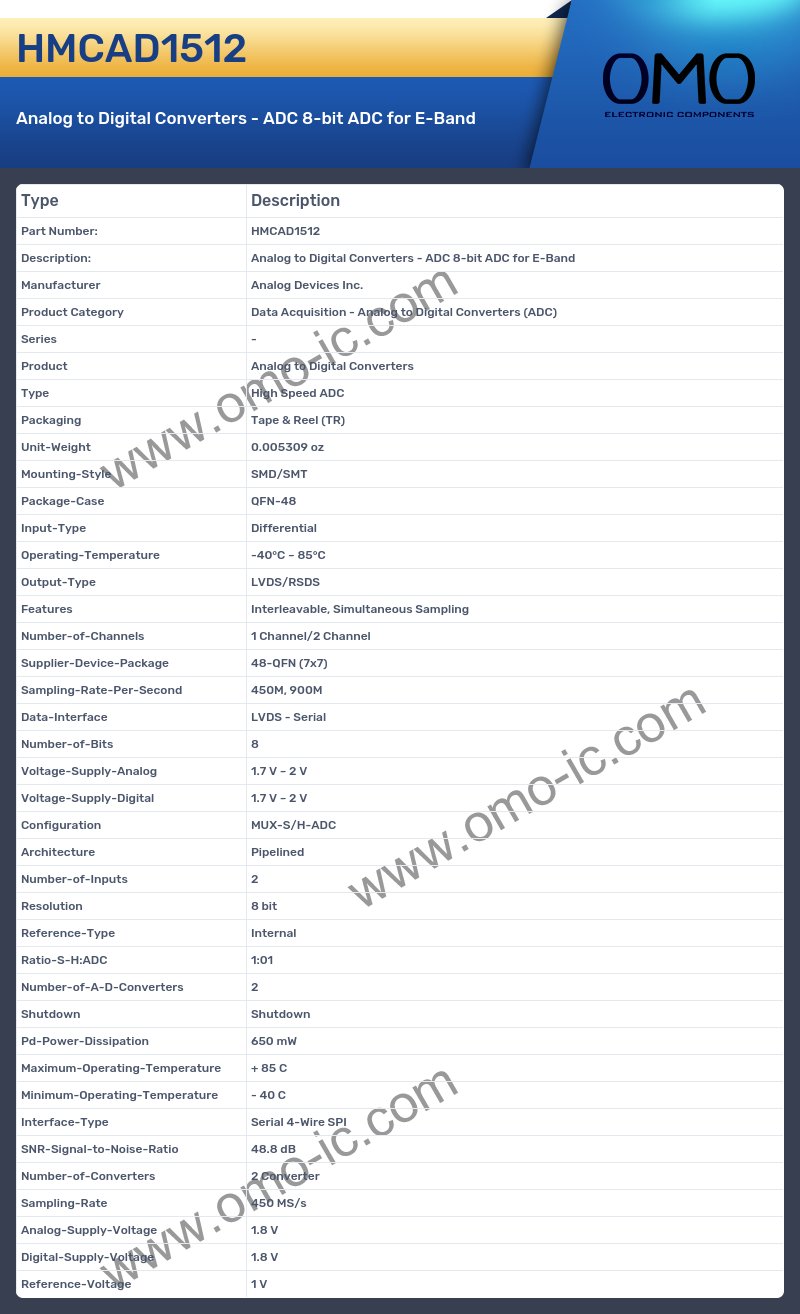

HMCAD1512 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series -
• Product Analog to Digital Converters
• Type High Speed ADC
• Packaging Tape & Reel (TR)
• Unit-Weight 0.005309 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-48
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS/RSDS
• Features Interleavable, Simultaneous Sampling
• Number-of-Channels 1 Channel/2 Channel
• Supplier-Device-Package 48-QFN (7x7)
• Sampling-Rate-Per-Second 450M, 900M
• Data-Interface LVDS - Serial
• Number-of-Bits 8
• Voltage-Supply-Analog 1.7 V ~ 2 V
• Voltage-Supply-Digital 1.7 V ~ 2 V
• Configuration MUX-S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 2
• Resolution 8 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 2
• Shutdown Shutdown
• Pd-Power-Dissipation 650 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 4-Wire SPI
• SNR-Signal-to-Noise-Ratio 48.8 dB
• Number-of-Converters 2 Converter
• Sampling-Rate 450 MS/s
• Analog-Supply-Voltage 1.8 V
• Digital-Supply-Voltage 1.8 V
• Reference-Voltage 1 V
