HMCAD1511

HMCAD1511 Overview

Product belongs to the HMCAD1511G series. This product is categorized as Analog to Digital Converters Type: Multiplexed ADC Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.005309 oz SMD/SMT Mounting-Style QFN-48 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel/2 Channel/4 Channel Supplier device package: 48-QFN (7x7) This product's 250M, 500M, 1G. Data-Interface: LVDS - Serial 8 bits The Voltage-Supply-Analog is 1.7 V ~ 2 V. The Voltage Supply Digital for this product is 1.7 V ~ 2 V. Configuration S/H-ADC The architecture of this product is Pipelined . Internal is the reference type. 4 units Power-off control: 710 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 4-Wire SPI interface type Signal-to-Noise Ratio of 49.8 dB Number-of-Converters: 4 Converter 1 GS/s Sampling Rate Analog supply voltage: 1.8 V Digital Supply Voltage: 1.8 V Reference voltage is 1 V .

HMCAD1511 Image

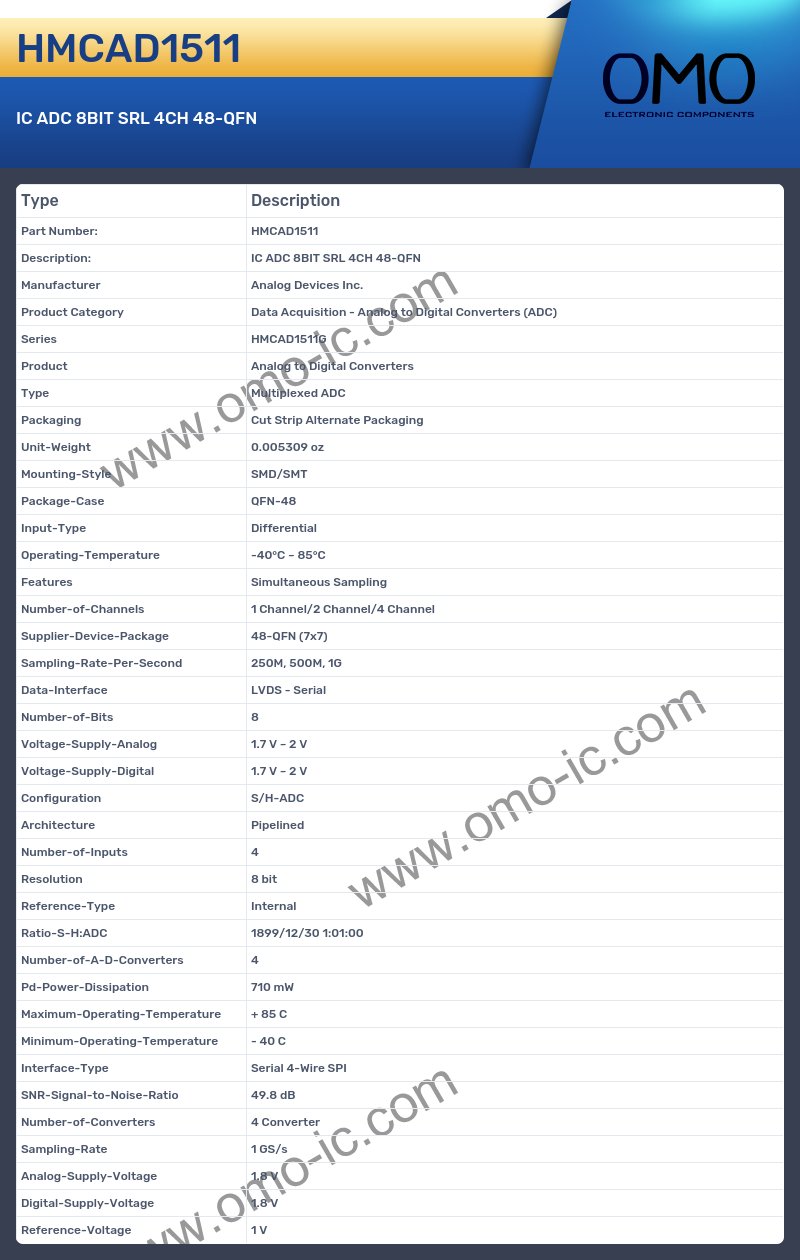

HMCAD1511 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series HMCAD1511G
• Product Analog to Digital Converters
• Type Multiplexed ADC
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.005309 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-48
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features Simultaneous Sampling
• Number-of-Channels 1 Channel/2 Channel/4 Channel
• Supplier-Device-Package 48-QFN (7x7)
• Sampling-Rate-Per-Second 250M, 500M, 1G
• Data-Interface LVDS - Serial
• Number-of-Bits 8
• Voltage-Supply-Analog 1.7 V ~ 2 V
• Voltage-Supply-Digital 1.7 V ~ 2 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 4
• Resolution 8 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 4
• Pd-Power-Dissipation 710 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 4-Wire SPI
• SNR-Signal-to-Noise-Ratio 49.8 dB
• Number-of-Converters 4 Converter
• Sampling-Rate 1 GS/s
• Analog-Supply-Voltage 1.8 V
• Digital-Supply-Voltage 1.8 V
• Reference-Voltage 1 V
